556 Dual Timer IC

The NE556 dual monolithic timing circuit is a highly stable controller capable of producing accurate time delays or oscillation. In the time delay mode of operation, the time is precisely controlled by one external resistor and capacitor. For a stable operation as an oscillator, the free running fre- quency and the duty cycle are both accurately controlled with two external resistors and one ca- pacitor. The circuit may be triggered and reset on falling waveforms, and the output structure can source or sink up to 200mA.

Low turn off time

Maximum operating frequency greater than 500kHz

Timing from microseconds to hours

Operates in both astable and monostable modes

High output current can source or sink 200mA

Adjustable duty cycle

TTL compatible

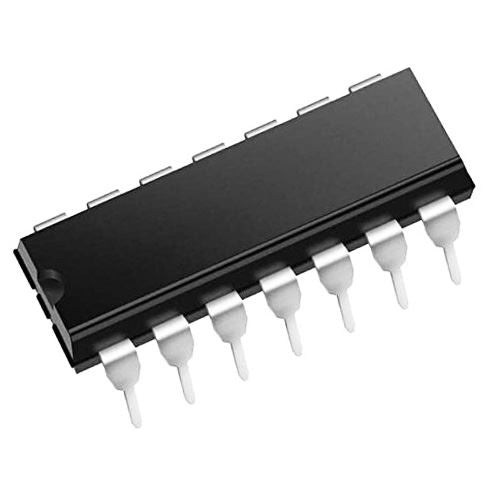

Package: DIL-14
