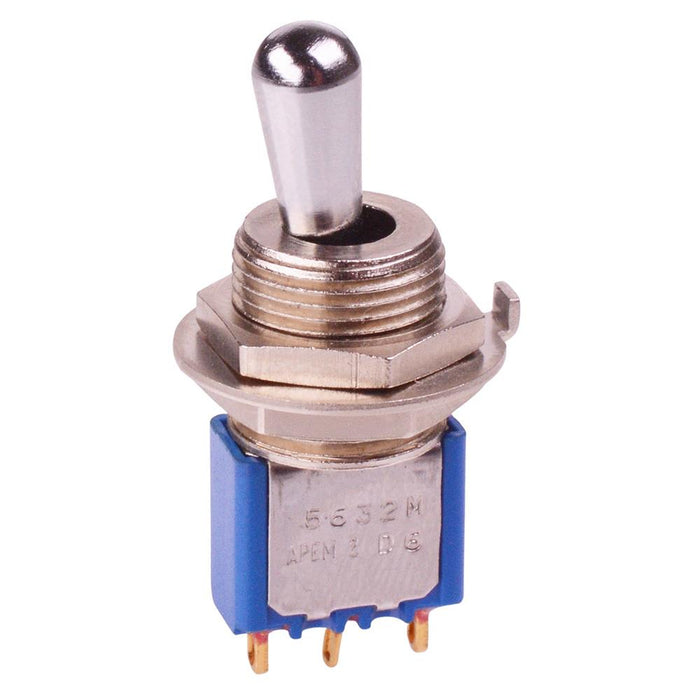

5632MCDB27 APEM On-(On) Momentary 11.9mm Miniature Toggle Switch SPDT
by APEM
SKU 487406
MPN: 5632MCDB27
Availability:
61 in stock
Original price
£7.20
-
Original price
£7.20
Original price
£7.20
Inc VAT
£7.20
-
£7.20
Current price
£7.20
Inc VAT
The 5632MCDB27 is a miniature toggle switch featuring a 11.9mm bushing and On-(On) momentary SPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature solder terminals making them suitable for a wide range of panel mount applications.
SPDT contacts On-(On) momentary operation Solder terminals Lever: round 11.7mm length Rating: 0.4VA 20VAC/DC Panel cut-out: 12.5mm Epoxy sealed terminals APEM 5000 series
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | SPDT |
| Contact material | Gold Plated Brass |
| Contact rating | 0.4VA 20VAC/DC |
| Current rating | 0.4VA |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 12.5mm |
| Panel thickness | 2.5mm |
| Product series | 5000 |
| Switch operation | On-(On) |
| Terminal type | Solder |
| Voltage rating | 20VAC/DC |
