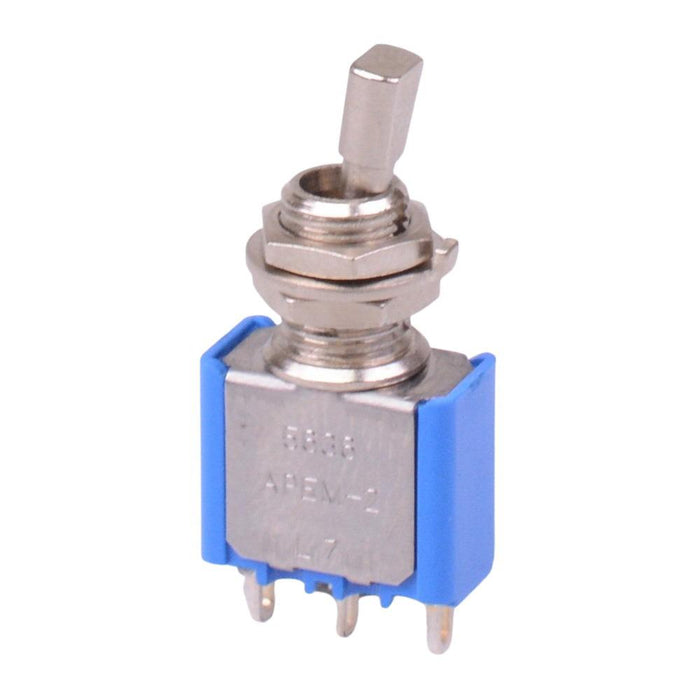

5636A-12 APEM Short Flat Lever On-On Miniature Toggle Switch SPDT
by APEM
SKU 489841
MPN: 5636A-12
Availability:
465 in stock
Original price
£5.39
-
Original price
£5.39
Original price
£5.39
£5.39
-
£5.39
Current price
£5.39
The 5636AB-12 is a miniature toggle switch featuring On-On SPDT contacts, from the APEM 5000 series of switches. The switches feature solder lug terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
Solder lug terminals Contact rating: 4A 30VDC Panel cut-out: 6.5mm 6.3mm length flat lever Silver contacts Epoxy sealed terminals Dimensions: 30.0 x 7.0 x 13.2mm (height x depth x length) UL, CSA, CECC approved APEM 5000 series
Specification
Actuation | Latching |
Contact Configuration | SPDT |
Contact Material | Silver |
Contact Rating | 4A 30VDC |
Current Rating | 4A |
Electrical Life | 50,000 Cycles |
Illuminated | No |
MOQ | 1 |
Mounting Style | Panel |
Number of Poles | 1 |
Number of Positions | 2 |
Operating Temperature | -40°C to +85°C |
Panel Cut Out | 6.5mm |
Panel Thickness | 2.5mm |
Product Series | 5000 |
Switch Operation | On-On |
Terminal Type | Solder |
Voltage Rating | 30VDC |
