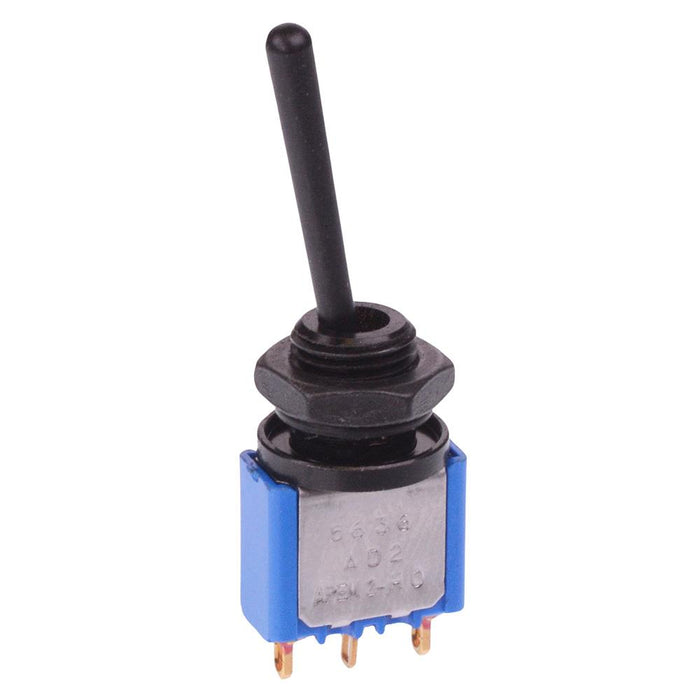

5636AD2G3X443 APEM Black On-On 8mm Miniature Toggle Switch SPDT 4A 30VDC
by APEM
SKU 487615
MPN: 5636AD2G3X443
Availability:
15 in stock
Original price
£13.08
-
Original price
£13.08
Original price
£13.08
£13.08
-
£13.08
Current price
£13.08
The 5636AD2G3X443 is a miniature toggle switch featuring a 8mm bushing and On-On SPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature solder terminals making them suitable for a wide range of panel mount applications.
- SPDT contacts
- On-On operation
- Solder terminals
- Lever: round 13mm length
- Rating: 4A 30VDC
- Panel cut-out: 8mm
- APEM 5000 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 4mm |
| Product Series | 5000 |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
