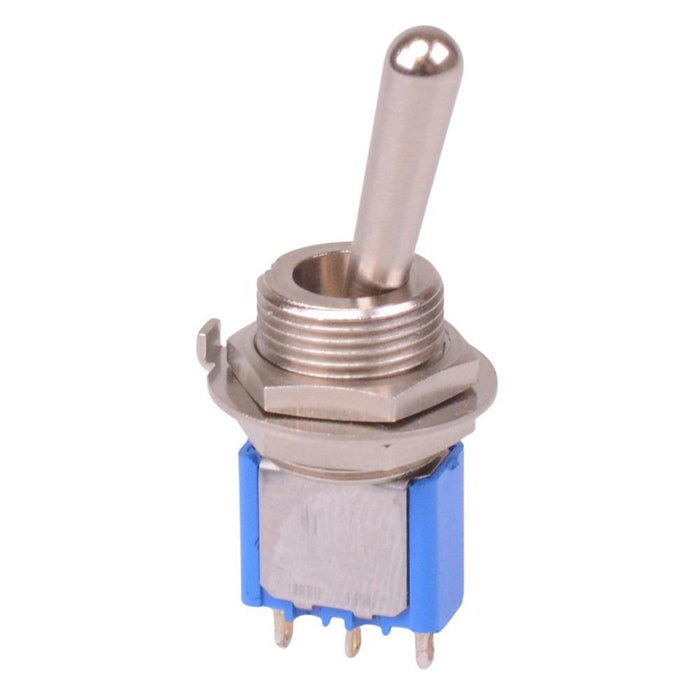

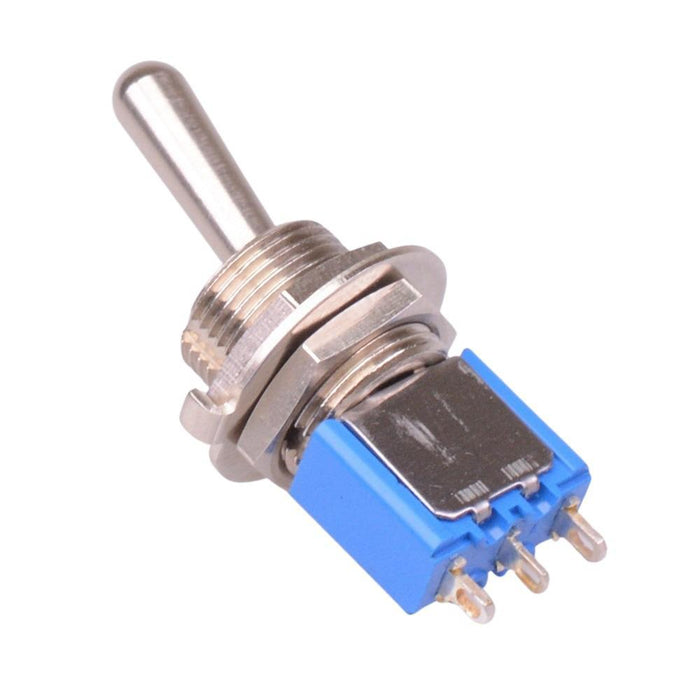

5636MA APEM On-On Miniature Toggle Switch 11.9mm Bushing SPDT
by APEM
SKU 489847
MPN: 5636MA
Availability:
50 in stock
Original price
£7.84
-
Original price
£7.84
Original price
£7.84
£7.84
-
£7.84
Current price
£7.84
The 5636MA is a miniature toggle switch featuring On-On SPDT contacts, from the APEM 5000 series of switches. The switches feature solder lug terminals and 11.9mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
Solder lug terminals Contact rating: 4A 30VDC Panel cut-out: 12.5mm 10.5mm length round lever Silver contacts Epoxy sealed terminals Dimensions: 37.1 x 7.0 x 13.2mm (height x depth x length) UL, CSA, CECC approved APEM 5000 series
Specification
Actuation | Latching |
Contact Configuration | SPDT |
Contact Material | Silver |
Contact Rating | 4A 30VDC |
Current Rating | 4A |
Electrical Life | 50,000 Cycles |
Illuminated | No |
MOQ | 1 |
Mounting Style | Panel |
Number of Poles | 1 |
Number of Positions | 2 |
Operating Temperature | -40°C to +85°C |
Panel Cut Out | 12.5mm |
Panel Thickness | 2.5mm |
Product Series | 5000 |
Switch Operation | On-On |
Terminal Type | Solder |
Voltage Rating | 30VDC |
