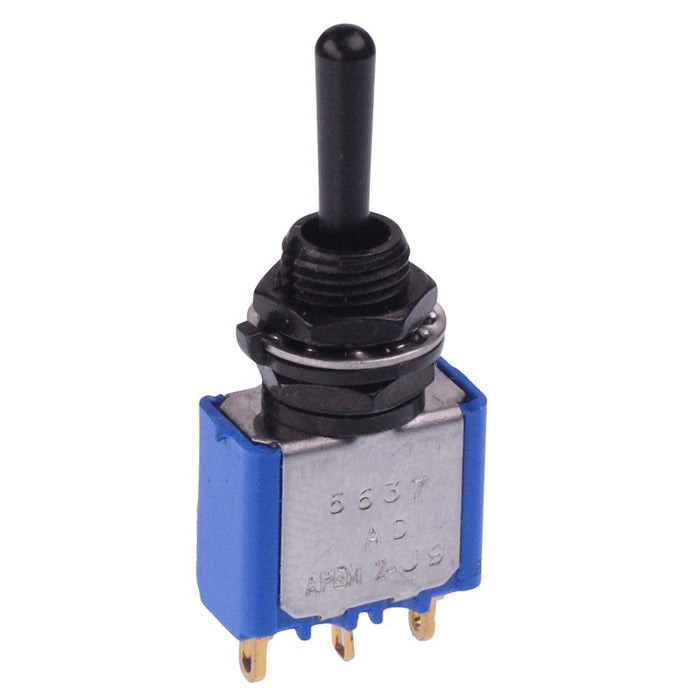

5637AD1.25G APEM Black (On)-Off-(On) Momentary 6.35mm Miniature Toggle Switch SPDT 4A 30VDC
by APEM
SKU 487950
MPN: 5637AD1.25G
Availability:
39 in stock
Original price
£4.36
-
Original price
£4.36
Original price
£4.36
£4.36
-
£4.36
Current price
£4.36
The 5637AD1.25G is a miniature toggle switch featuring a 6.35mm bushing and (On)-Off-(On) momentary SPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature solder terminals making them suitable for a wide range of panel mount applications.
SPDT contacts (On)-Off-(On) momentary operation Solder terminals Lever: round 10.5mm length Rating: 4A 30VDC Panel cut-out: 6.5mm APEM 5000 series
Specification
Actuation | Momentary |
Back Order Lead Time | 10 Days |
Contact Configuration | SPDT |
Contact Material | Gold Plated Silver |
Contact Rating | 4A 30VDC |
Current Rating | 4A |
Electrical Life | 50,000 Cycles |
Illuminated | No |
Mounting Style | Panel |
Number of Poles | 1 |
Number of Positions | 3 |
Operating Temperature | -40°C to +85°C |
Panel Cut Out | 6.5mm |
Panel Thickness | 2.5mm |
Product Series | 5000 |
Switch Operation | (On)-Off-(On) |
Terminal Type | Solder |
Voltage Rating | 30VDC |
