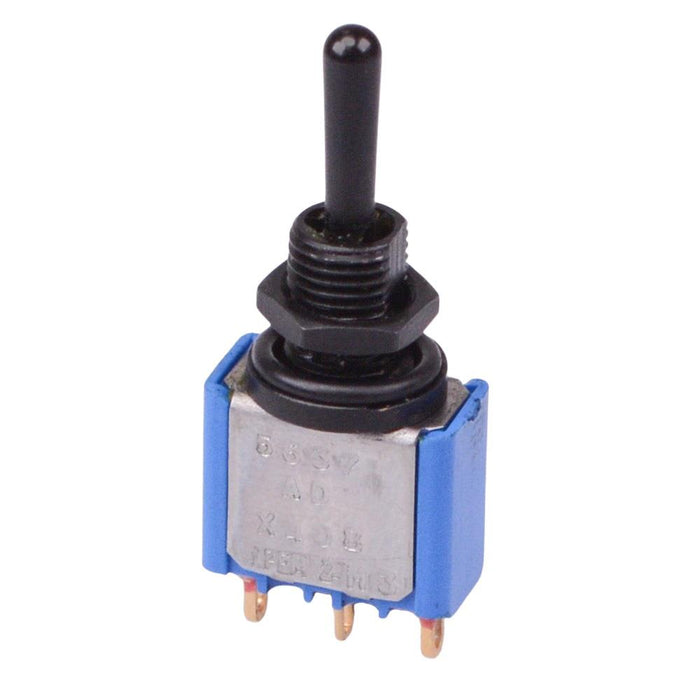

5637ADGBX408 APEM Black (On)-Off-(On) Momentary Miniature Toggle Switch Sealed SPDT

by APEM
SKU 489848

MPN: 5637ADGBX408

Availability:
8 in stock
Original price £9.26 - Original price £9.26
Original price
£9.26
£9.26 - £9.26
Current price £9.26
The 5637ADGBX408 is a miniature toggle switch featuring (On)-Off-(On) SPDT contacts and black finish, from the APEM 5000 series of switches. The switches feature solder lug terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.

  • Solder lug terminals
  • Contact rating: 4A 30VDC
  • Panel cut-out: 6.5mm
  • 6.3mm length flat lever
  • Gold plated silver contacts
  • Epoxy sealed terminals
  • Front panel sealing by two O-rings
  • Dimensions: 34.2 x 7.0 x 13.2mm (height x depth x length)
  • UL, CSA, CECC approved
  • APEM 5000 series
  • Specification
    Actuation Momentary
    Contact Configuration SPDT
    Contact Material Gold Plated Silver
    Contact Rating 4A 30VDC
    Current Rating 4A
    Electrical Life 50,000 Cycles
    Illuminated No
    MOQ 1
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 3
    Operating Temperature -40°C to +85°C
    Panel Cut Out 6.5mm
    Panel Thickness 2.5mm
    Product Series 5000
    Switch Operation (On)-Off-(On)
    Terminal Type Solder
    Voltage Rating 30VDC
