5637MAB-27 APEM (On)-Off-(On) Momentary 11.9mm Miniature Toggle Switch SPDT 4A 30VDC
by APEM
SKU 487587
MPN: 5637MAB-27
Availability:
15 in stock
Original price
£7.34
-
Original price
£7.34
Original price
£7.34
£7.34
-
£7.34
Current price
£7.34

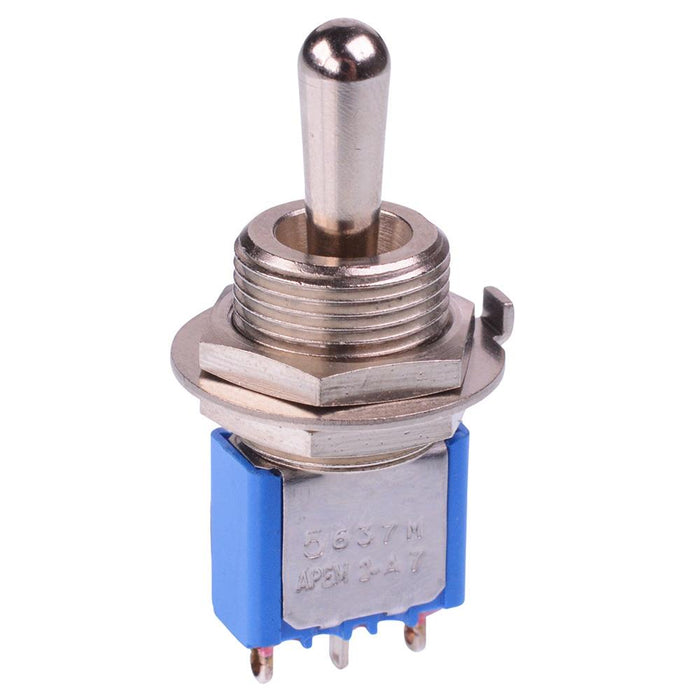

The 5637MAB-27 is a miniature toggle switch featuring a 11.9mm bushing and (On)-Off-(On) momentary SPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature solder terminals making them suitable for a wide range of panel mount applications.
SPDT contacts (On)-Off-(On) momentary operation Solder terminals Lever: round 11.7mm length Rating: 4A 30VDC Panel cut-out: 12.5mm Epoxy sealed terminals APEM 5000 series
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 12.5mm |
| Panel Thickness | 2.5mm |
| Product Series | 5000 |
| Switch Operation | (On)-Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
