5639A On-Off-On 6.35mm Miniature Toggle Switch SPDT 4A 30VDC APEM
by APEM
SKU 486021
MPN: 5639A
Availability:
151 in stock
Original price
£3.00
-
Original price
£3.00
Original price
£3.00
£3.00
-
£3.00
Current price
£3.00

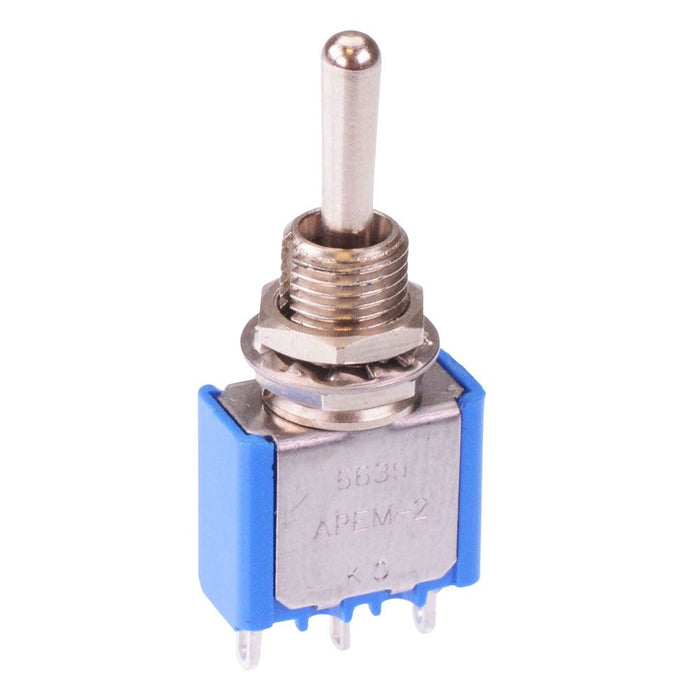

The 5639A is a miniature toggle switch featuring On-Off-On SPDT contacts, from the APEM 5000 series of switches. The switches feature solder lug terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
Solder lug terminals
Contact rating: 4A 30VDC
Panel cut-out: 6.5mm
Dimensions: 34.2 x 7.0 x 13.2mm (height x depth x length)
UL, CSA, CECC approved
APEM 5000 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Panel Thickness | 2.5mm |
| Product Series | 5000 |
| Switch Operation | On-Off-On |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
