5639A9 APEM On-Off-On 6.35mm Miniature Toggle Switch SPDT 4A 30VDC

by APEM
SKU 486022

MPN: 5639A9

Availability:
19 in stock
Original price £4.41 - Original price £4.41
Original price
£4.41 Inc VAT
£4.41 - £4.41
Current price £4.41 Inc VAT

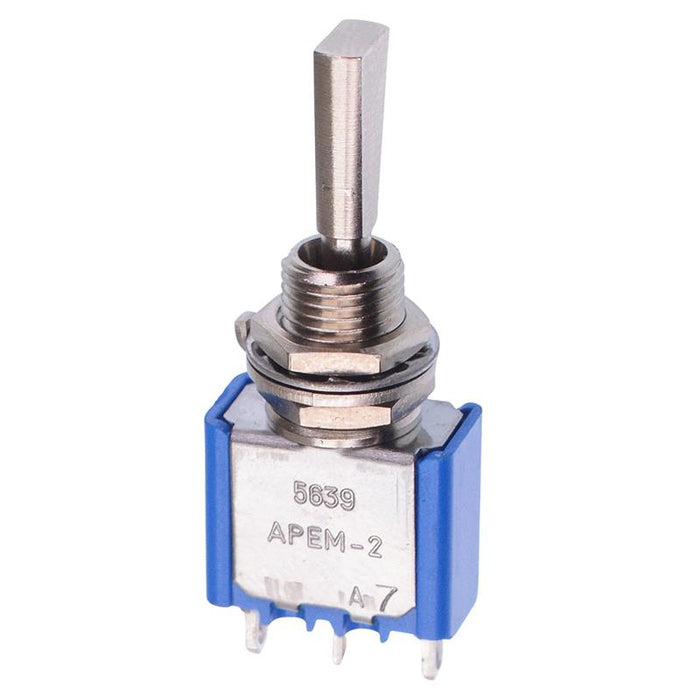

The 5639A9 is a miniature toggle switch featuring On-Off-On SPDT contacts, from the APEM 5000 series of switches. The switches feature solder lug terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.

  • Solder lug terminals
  • Flat lever
  • Contact rating: 4A 30VDC
  • Panel cut-out: 6.5mm
  • Dimensions: 34.2 x 7.0 x 13.2mm (height x depth x length)
  • UL, CSA, CECC approved
  • APEM 5000 series
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration SPDT
    Contact rating 4A 30VDC
    Current rating 4A
    Electrical life 50,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 3
    Operating temperature -40°C to +85°C
    Panel cut out 6.5mm
    Panel thickness 2.5mm
    Product series 5000
    Switch operation On-Off-On
    Terminal type Solder
    Voltage rating 30VDC
