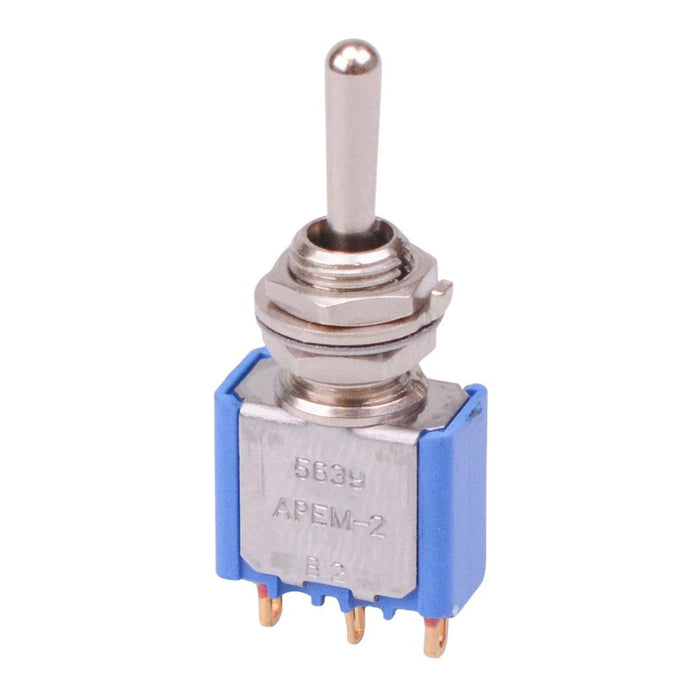

5639CDB APEM On-Off-On Miniature Toggle Switch SPDT
by APEM
SKU 489852
MPN: 5639CDB
Availability:
50 in stock
Original price
£3.26
-
Original price
£3.26
Original price
£3.26
Inc VAT
£3.26
-
£3.26
Current price
£3.26
Inc VAT
The 5639CDB is a miniature toggle switch featuring On-Off-On SPDT contacts, from the APEM 5000 series of switches. The switches feature solder lug terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
Solder lug terminals Contact rating: 4A 30VDC Panel cut-out: 6.5mm Gold plated brass contacts Epoxy sealed terminals Round 10.5mm length lever Dimensions: 34.2 x 7.0 x 13.2mm (height x depth x length) UL, CSA, CECC approved APEM 5000 series
Specification
| Actuation | Latching |
| Contact configuration | SPDT |
| Contact material | Gold Plated Brass |
| Contact rating | 0.4VA 20VAC/DC |
| Current rating | 0.4VA |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 3 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 6.5mm |
| Panel thickness | 2.5mm |
| Product series | 5000 |
| Switch operation | On-Off-On |
| Terminal type | Solder |
| Voltage rating | 20VAC/DC |
