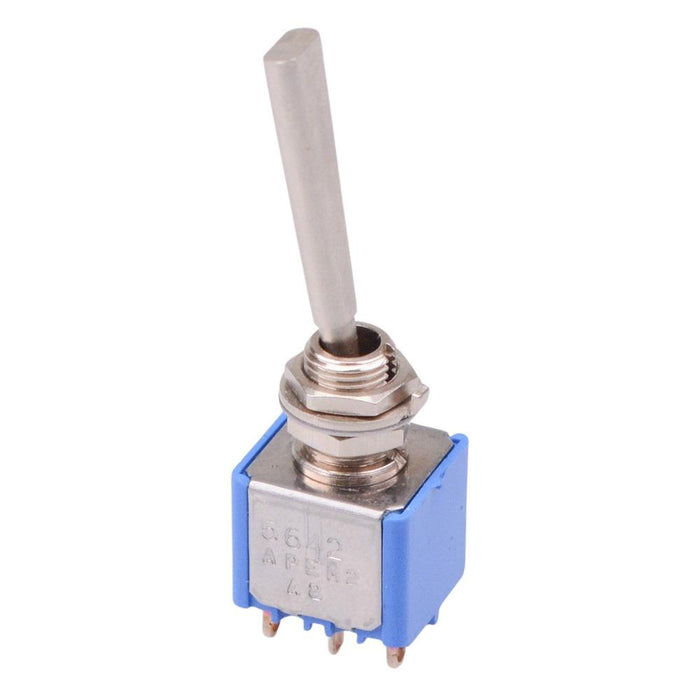

5642AB-8 APEM On-(On) Momentary Miniature Toggle Switch Flat Lever DPDT
by APEM
SKU 489853
MPN: 5642AB-8
Availability:
23 in stock
Original price
£8.33
-
Original price
£8.33
Original price
£8.33
Inc VAT
£8.33
-
£8.33
Current price
£8.33
Inc VAT
The 5642AB-8 is a miniature toggle switch featuring On-(On) momentary DPDT contacts, from the APEM 5000 series of switches. The switches feature solder lug terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.

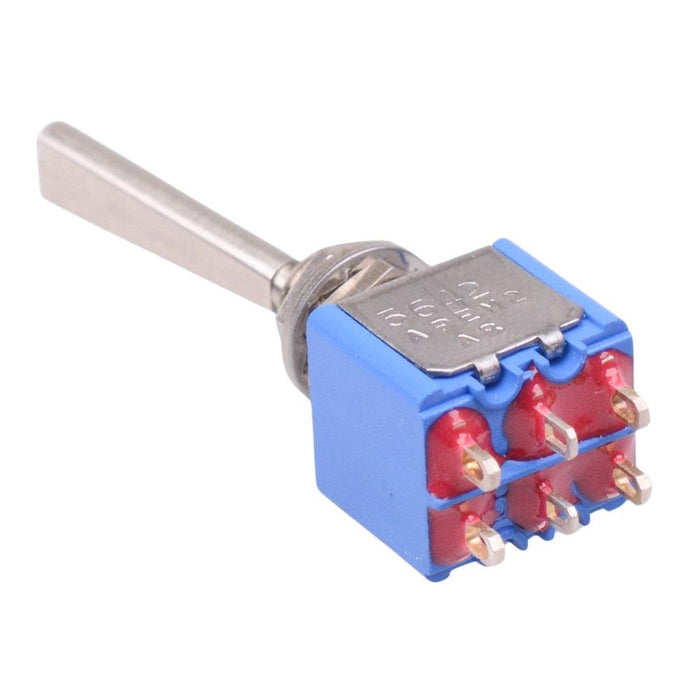

Solder lug terminals Contact rating: 4A 30VDC Panel cut-out: 6.5mm Silver contacts Epoxy sealed terminals Flat 21.3mm length lever Dimensions: 45.0 x 12.0 x 13.2mm (height x depth x length) UL, CSA, CECC approved APEM 5000 series
Specification
| Actuation | Momentary |
| Contact configuration | DPDT |
| Contact material | Silver |
| Contact rating | 4A 30VDC |
| Current rating | 4A |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 6.5mm |
| Panel thickness | 2.5mm |
| Product series | 5000 |
| Switch operation | On-(On) |
| Terminal type | Solder |
| Voltage rating | 30VDC |
