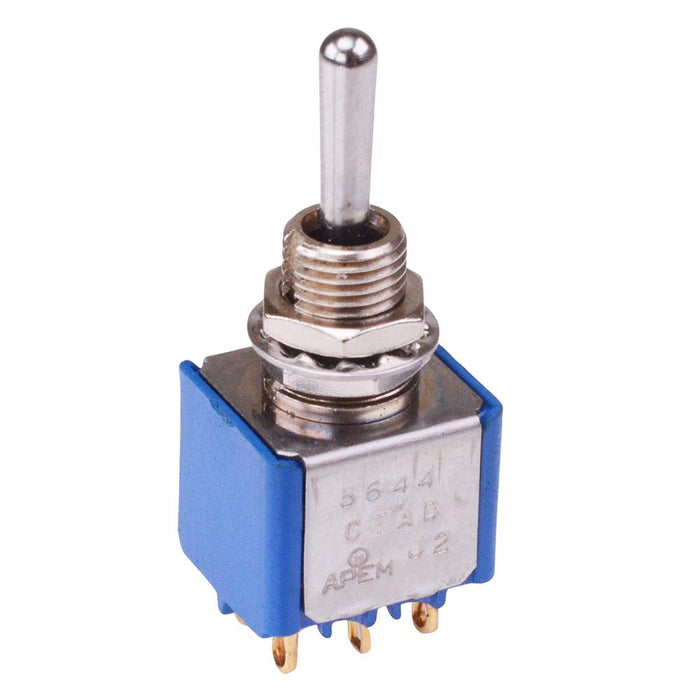

5644CTAD1.25 APEM On-On-On 6.35mm Miniature Toggle Switch DPDT 4A 30VDC

by APEM
SKU 487458

MPN: 5644CTAD1.25

Availability:
86 in stock
Original price £3.60 - Original price £3.60
Original price
£3.60
£3.60 - £3.60
Current price £3.60
The 5644CTAD1.25 is a miniature toggle switch featuring a 6.35mm bushing and On-On-On DPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature solder terminals making them suitable for a wide range of panel mount applications.

  • DPDT contacts
  • On-On-On operation
  • Solder terminals
  • Lever: round 10.5mm length
  • Rating: 4A 30VDC
  • Panel cut-out: 6.5mm
  • APEM 5000 series
  • Specification
    Actuation Latching
    Back Order Lead Time 10 Days
    Contact Configuration DPDT
    Contact Material Gold Plated Silver
    Contact Rating 4A 30VDC
    Current Rating 4A
    Electrical Life 50,000 Cycles
    Illuminated No
    Mounting Style Panel
    Number of Poles 2
    Number of Positions 3
    Operating Temperature -40°C to +85°C
    Panel Cut Out 6.5mm
    Panel Thickness 2.5mm
    Product Series 5000
    Switch Operation On-On-On
    Terminal Type Solder
    Voltage Rating 30VDC
