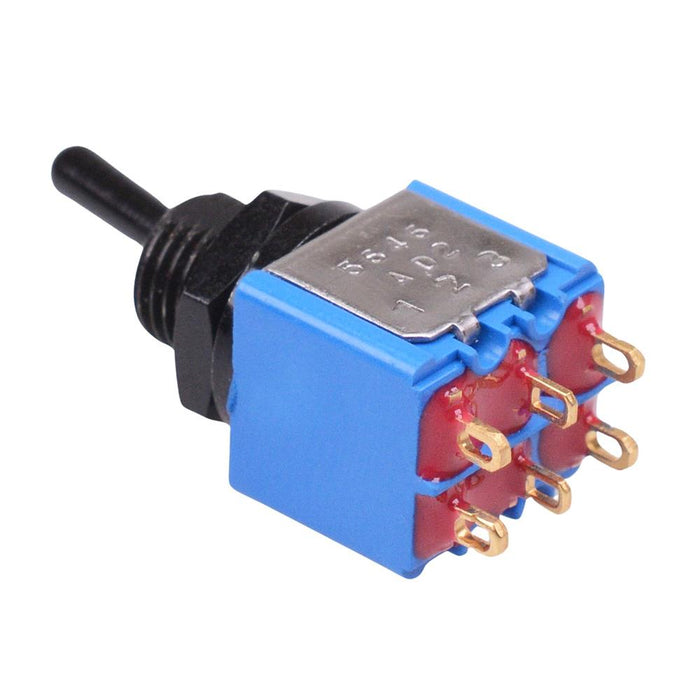

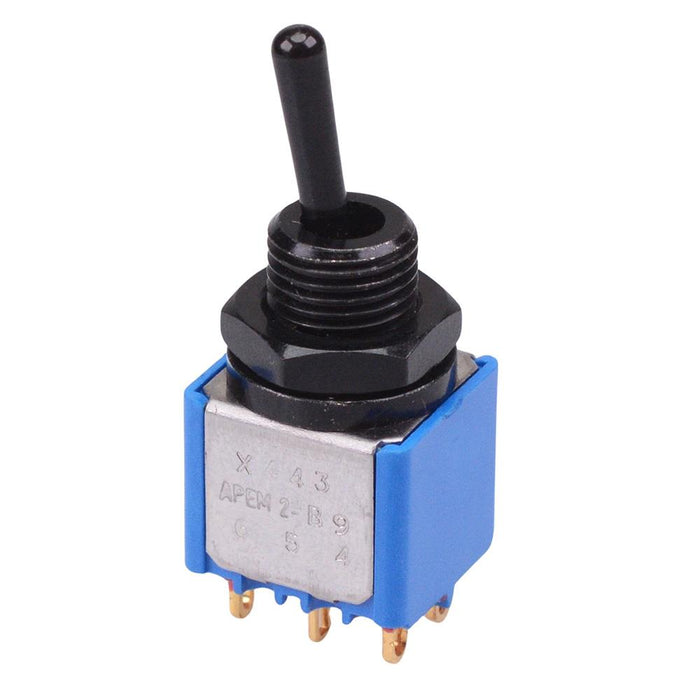

5646AD2GBX443 APEM Black On-On Miniature Toggle Switch Sealed DPDT

by APEM
SKU 489861

MPN: 5646AD2GBX443

Availability:
Only 5 left!
Original price £12.78 - Original price £12.78
Original price
£12.78
£12.78 - £12.78
Current price £12.78
The 5646AD2GBX443 is a miniature black toggle switch featuring On-Off DPST contacts, from the APEM 5000 series of switches. The switches feature solder lug terminals and 8mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.

  • Solder lug terminals
  • Contact rating: 4A 30VDC
  • Panel cut-out: 8mm
  • Gold plated silver contacts
  • Epoxy sealed terminals
  • Round 10.5mm round lever
  • Dimensions: 33.3 x 12.0 x 13.2mm (height x depth x length)
  • UL, CSA, CECC approved
  • APEM 5000 series
  • Specification
    Actuation Latching
    Contact Configuration DPDT
    Contact Material Gold Plated Silver
    Contact Rating 4A 30VDC
    Current Rating 4A
    Electrical Life 50,000 Cycles
    Illuminated No
    MOQ 1
    Mounting Style Panel
    Number of Poles 2
    Number of Positions 2
    Operating Temperature -40°C to +85°C
    Panel Cut Out 8mm
    Panel Thickness 4mm
    Product Series 5000
    Switch Operation On-On
    Terminal Type Solder
    Voltage Rating 30VDC
