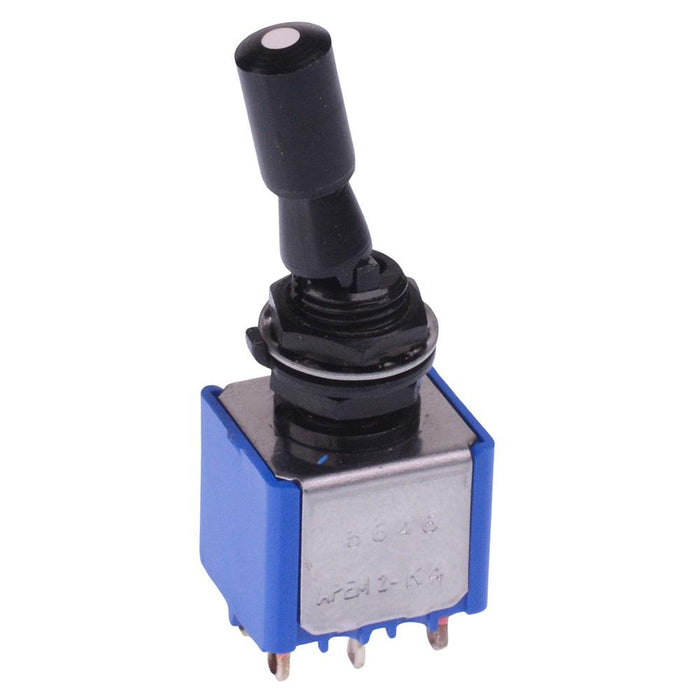

5646AGB038-2V APEM Black On-On Locking 6.35mm Miniature Toggle Switch DPDT 4A 30VDC
by APEM
SKU 487756
MPN: 5646AGB038-2V
Availability:
Out of stock
Sold out
Original price
£8.72
-
Original price
£8.72
Original price
£8.72
£8.72
-
£8.72
Current price
£8.72
The 5646AGB038-2V is a miniature toggle switch featuring a 6.35mm bushing and On-On DPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature solder terminals making them suitable for a wide range of panel mount applications.
DPDT contacts On-On operation Solder terminals Lever: locking 14.75mm length Rating: 4A 30VDC Panel cut-out: 6.5mm Epoxy sealed terminals APEM 5000 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPDT |
| Contact Material | SIlver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Panel Thickness | 2.5mm |
| Product Series | 5000 |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
