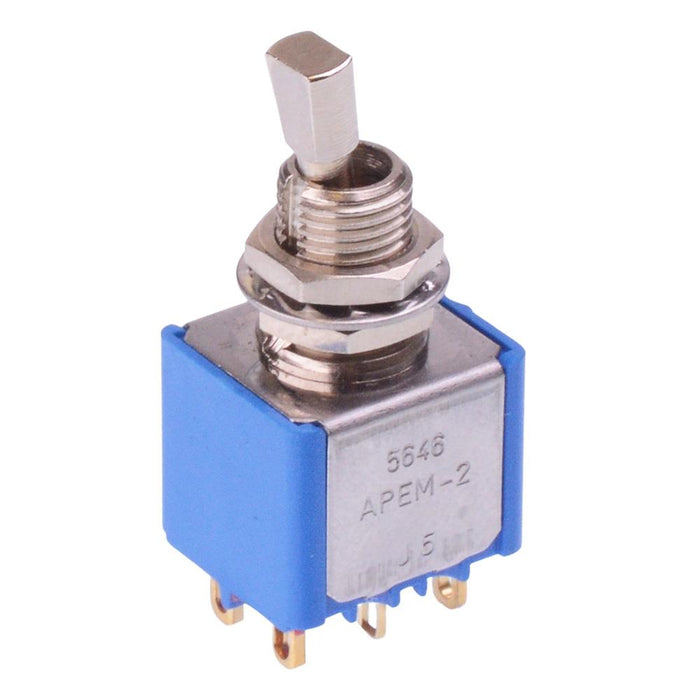

5646CDB-12 APEM On-On 6.35mm Miniature Toggle Switch DPDT
by APEM
SKU 488110
MPN: 5646CDB-12
Availability:
Out of stock
Sold out
Original price
£3.70
-
Original price
£3.70
Original price
£3.70
£3.70
-
£3.70
Current price
£3.70
The 5646CDB-12 is a miniature toggle switch featuring a 6.35mm bushing and On-On DPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature solder terminals making them suitable for a wide range of panel mount applications.
DPDT contacts On-On operation Solder terminals Lever: paddle 6.3mm length Rating: 0.4VA 20VAC/DC Panel cut-out: 6.5mm Epoxy sealed terminals APEM 5000 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.4VA 20VAC/DC |
| Current Rating | 0.4VA |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Panel Thickness | 2.5mm |
| Product Series | 5000 |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 20VAC/DC |
