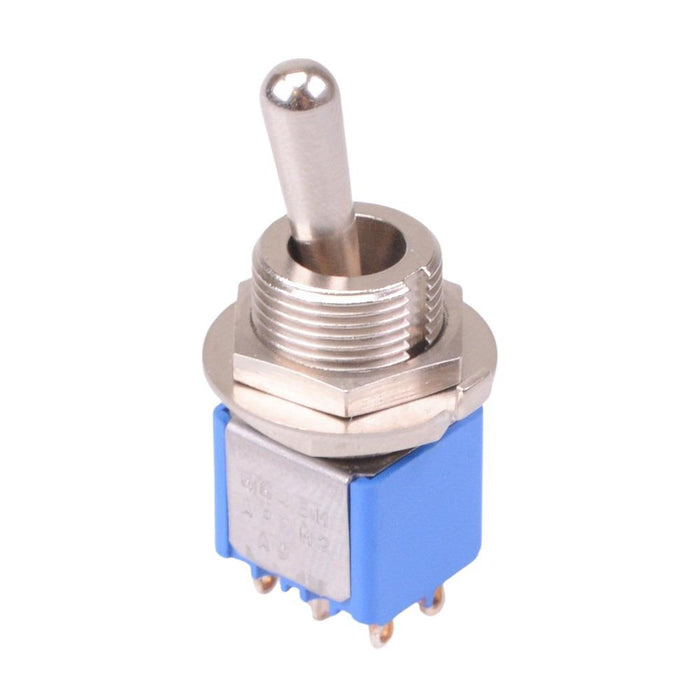

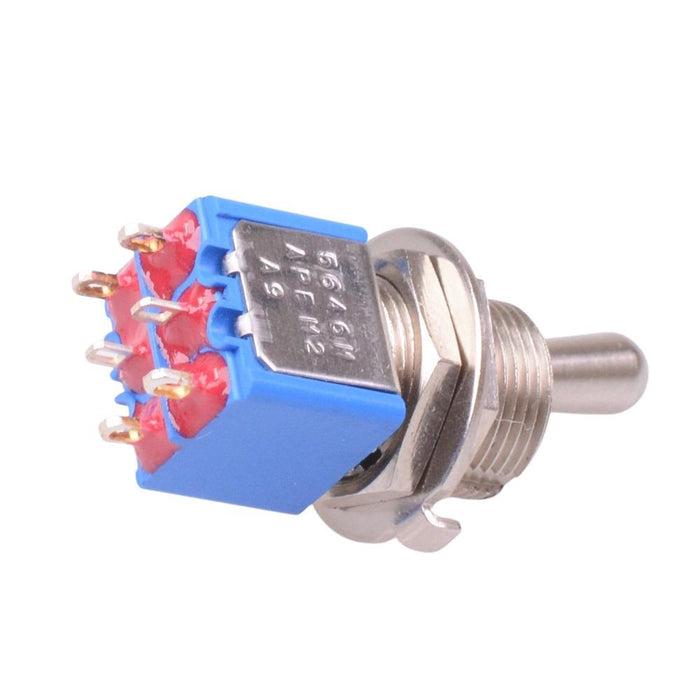

5646MAB-27 APEM On-On Miniature Toggle Switch 11.9mm Bushing DPDT

by APEM
SKU 489862

MPN: 5646MAB-27

Availability:
55 in stock
Original price £8.74 - Original price £8.74
Original price
£8.74
£8.74 - £8.74
Current price £8.74
The 5646MAB-27 is a miniature toggle switch featuring On-On DPDT contacts, from the APEM 5000 series of switches. The switches feature solder lug terminals and 11.9mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.

  • Solder lug terminals
  • Contact rating: 4A 30VDC
  • Panel cut-out: 12.5mm
  • Silver contacts
  • Epoxy sealed terminals
  • 11.7mm round lever
  • Dimensions: 38.3 x 12.0 x 13.2mm (height x depth x length)
  • UL, CSA, CECC approved
  • APEM 5000 series
  • Specification
    Actuation Latching
    Contact Configuration DPDT
    Contact Material Silver
    Contact Rating 4A 30VDC
    Current Rating 4A
    Electrical Life 50,000 Cycles
    Illuminated No
    MOQ 1
    Mounting Style Panel
    Number of Poles 2
    Number of Positions 2
    Operating Temperature -40°C to +85°C
    Panel Cut Out 12.5mm
    Panel Thickness 2.5mm
    Product Series 5000
    Switch Operation On-On
    Terminal Type Solder
    Voltage Rating 30VDC
