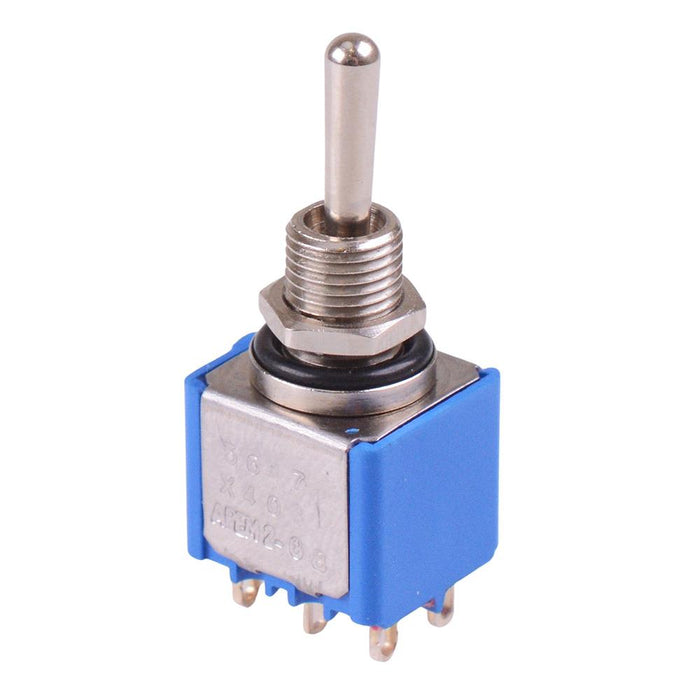

5647ABX408 APEM (On)-Off-(On) Momentary Miniature Toggle Switch DPDT
by APEM
SKU 489863
MPN: 5647ABX408
Availability:
39 in stock
Original price
£9.22
-
Original price
£9.22
Original price
£9.22
£9.22
-
£9.22
Current price
£9.22
The 5647ABX408 is a miniature toggle switch featuring (On)-Off-(On) DPDT contacts and black finish, from the APEM 5000 series of switches. The switches feature solder lug terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
Solder lug terminals Contact rating: 4A 30VDC Panel cut-out: 6.5mm 10.5mm length lever Silver contacts Epoxy sealed terminals Front panel sealing by two O-rings Dimensions: 34.2 x 12.0 x 13.2mm (height x depth x length) UL, CSA, CECC approved APEM 5000 series
Specification
Actuation | Momentary |
Contact Configuration | DPDT |
Contact Material | Silver |
Contact Rating | 4A 30VDC |
Current Rating | 4A |
Electrical Life | 50,000 Cycles |
Illuminated | No |
MOQ | 1 |
Mounting Style | Panel |
Number of Poles | 2 |
Number of Positions | 3 |
Operating Temperature | -40°C to +85°C |
Panel Cut Out | 6.5mm |
Panel Thickness | 2.5mm |
Product Series | 5000 |
Switch Operation | On)-Off-(On) |
Terminal Type | Solder |
Voltage Rating | 30VDC |
