5648MA APEM On-Off-(On) Momentary 11.9mm Miniature Toggle Switch DPDT 4A 30VDC
by APEM
SKU 487262
MPN: 5648MA
Availability:
442 in stock
Original price
£7.25
-
Original price
£7.25
Original price
£7.25
£7.25
£7.25
-
£7.25
Current price
£7.25

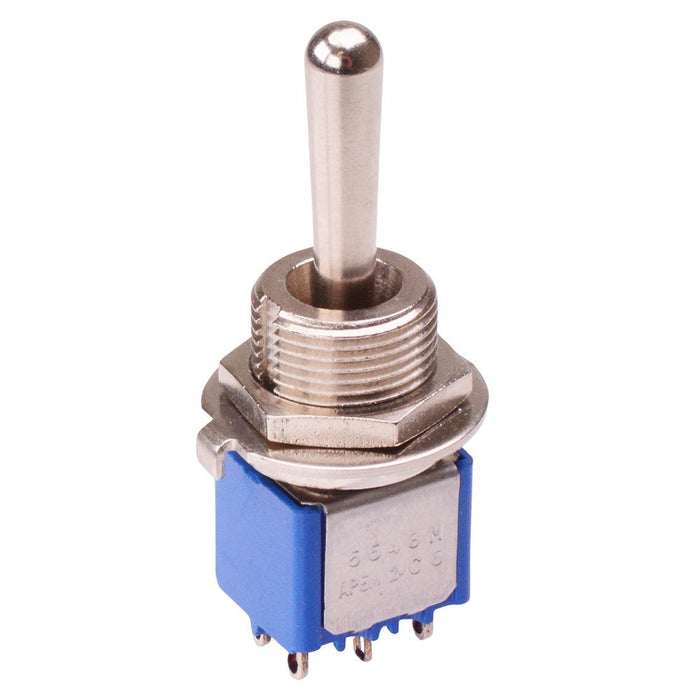

The 5648MA is a miniature toggle switch featuring a 11.9mm bushing and On-Off-(On) momentary DPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature solder terminals making them suitable for a wide range of panel mount applications.
DPDT contacts On-Off-(On) momentary operation Solder terminals Lever: round 17.5mm length Rating: 4A 30VDC Panel cut-out: 12.5mm APEM 5000 series
Specification
| Actuation | Latching / Momentary |
| Back Order Lead Time | 120 |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 12.5mm |
| Panel Thickness | 2.5mm |
| Product Series | 5000 |
| Switch Operation | On-Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
