5649A-12 APEM On-Off-On 6.35mm Miniature Toggle Switch DPDT 4A 30VDC
by APEM
SKU 487867
MPN: 5649A-12
Availability:
Out of stock
Sold out
Original price
£5.55
-
Original price
£5.55
Original price
£5.55
£5.55
£5.55
-
£5.55
Current price
£5.55

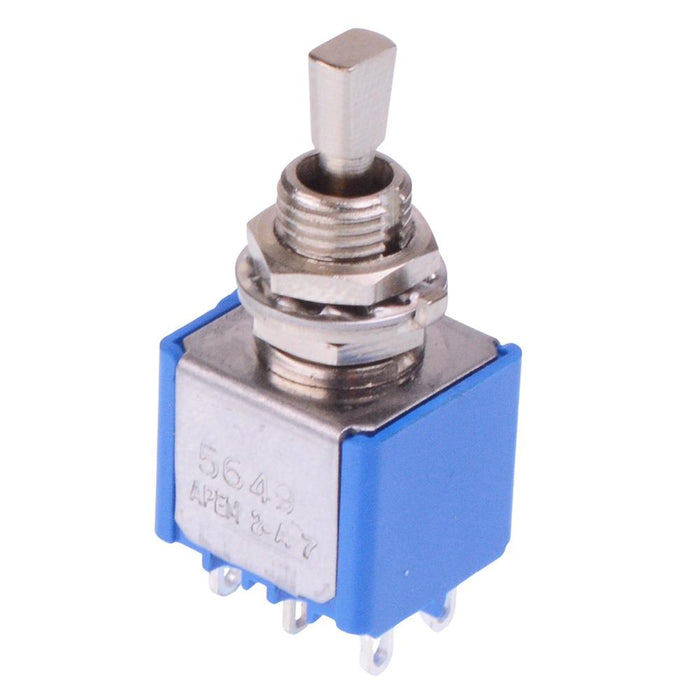

The 5649A-12 is a miniature toggle switch featuring a 6.35mm bushing and On-Off-On DPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature solder terminals making them suitable for a wide range of panel mount applications.
DPDT contacts On-Off-On operation Solder terminals Lever: paddle 6.3mm length Rating: 4A 30VDC Panel cut-out: 6.5mm APEM 5000 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Panel Thickness | 2.5mm |
| Product Series | 5000 |
| Switch Operation | On-Off-On |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
