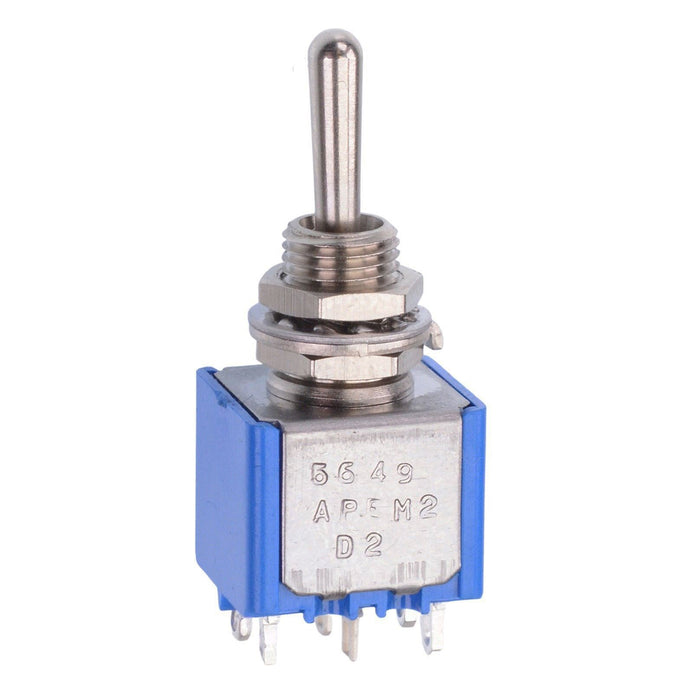

5649A APEM On-Off-On 6.35mm Miniature Toggle Switch DPDT 4A 30VDC
by APEM
SKU 486029
MPN: 5649A
Availability:
8 in stock
Original price
£3.90
-
Original price
£3.90
Original price
£3.90
Inc VAT
£3.90
-
£3.90
Current price
£3.90
Inc VAT
The 5649A is a miniature toggle switch featuring On-Off-On DPDT contacts, from the APEM 5000 series of switches. The switches feature solder lug terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
Solder lug terminals Contact rating: 4A 30VDC Panel cut-out: 6.5mm Dimensions: 34.2 x 12.0 x 13.2mm (height x depth x length) UL, CSA, CECC approved APEM 5000 series
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Contact configuration | DPDT |
| Contact rating | 4A 30VDC |
| Current rating | 4A |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 6.5mm |
| Panel thickness | 2.5mm |
| Product series | 5000 |
| Switch operation | On-Off-On |
| Terminal type | Solder |
| Voltage rating | 30VDC |
