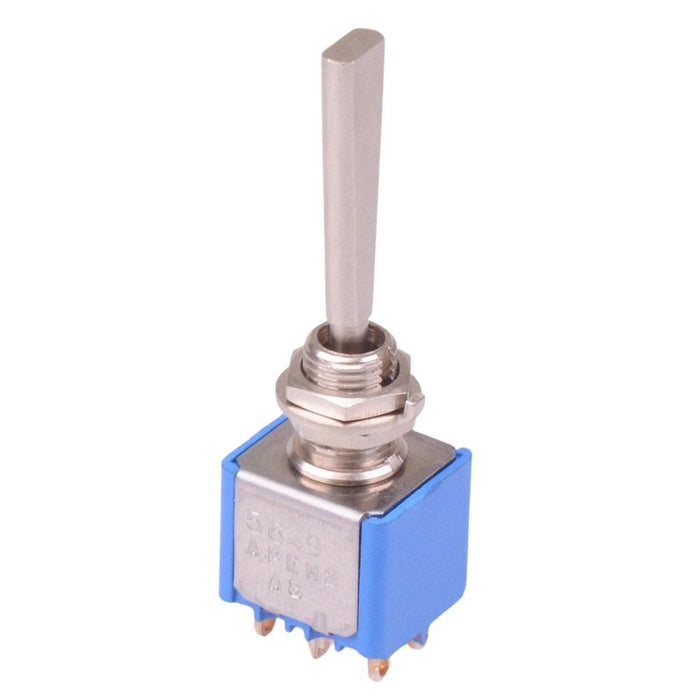

5649AB-8 APEM On-Off-On Miniature Toggle Switch Flat Lever DPDT

by APEM
SKU 489867

MPN: 5649AB-8

Availability:
19 in stock
Original price £8.20 - Original price £8.20
Original price
£8.20
£8.20 - £8.20
Current price £8.20
The 5649AB-8 is a miniature toggle switch featuring On-Off-On DPDT contacts, from the APEM 5000 series of switches. The switches feature solder lug terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.

  • Solder lug terminals
  • Contact rating: 4A 30VDC
  • Panel cut-out: 6.5mm
  • Silver contacts
  • Epoxy sealed terminals
  • Flat 21.3mm length lever
  • Dimensions: 45.0 x 12.0 x 13.2mm (height x depth x length)
  • UL, CSA, CECC approved
  • APEM 5000 series
  • Specification
    Actuation Latching
    Contact Configuration DPDT
    Contact Material Silver
    Contact Rating 4A 30VDC
    Current Rating 4A
    Electrical Life 50,000 Cycles
    Illuminated No
    MOQ 1
    Mounting Style Panel
    Number of Poles 2
    Number of Positions 3
    Operating Temperature -40°C to +85°C
    Panel Cut Out 6.5mm
    Panel Thickness 2.5mm
    Product Series 5000
    Switch Operation On-Off-On
    Terminal Type Solder
    Voltage Rating 30VDC
