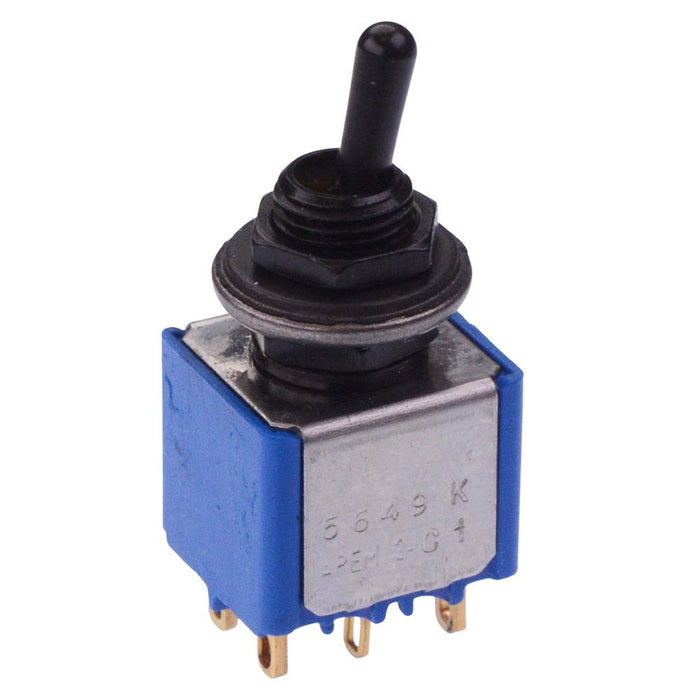

5649CDGK17 APEM Black On-Off-On 6.35mm Miniature Toggle Switch DPDT
by APEM
SKU 487628
MPN: 5649CDGK17
Availability:
55 in stock
Original price
£4.38
-
Original price
£4.38
Original price
£4.38
£4.38
-
£4.38
Current price
£4.38
The 5649CDGK17 is a miniature toggle switch featuring a 6.35mm bushing and On-Off-On DPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature solder terminals making them suitable for a wide range of panel mount applications.
DPDT contacts On-Off-On operation Solder terminals Lever: round 7mm length Rating: 0.4VA 20VAC/DC Panel cut-out: 6.5mm APEM 5000 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.4VA 20VAC/DC |
| Current Rating | 0.4VA |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Panel Thickness | 2.5mm |
| Product Series | 5000 |
| Switch Operation | On-Off-On |
| Terminal Type | Solder |
| Voltage Rating | 20VAC/DC |
