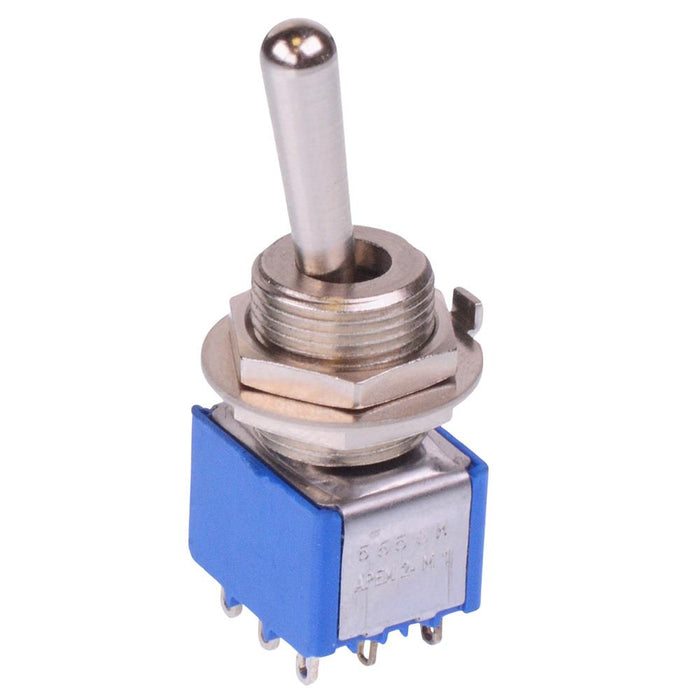

5656MA24 APEM On-On 11.9mm Miniature Toggle Switch 3PDT 4A 30VDC
by APEM
SKU 488224
MPN: 5656MA24
Availability:
Out of stock
Sold out
Original price
£7.88
-
Original price
£7.88
Original price
£7.88
£7.88
£7.88
-
£7.88
Current price
£7.88
The 5656MA24 is a miniature toggle switch featuring a 11.9mm bushing and On-On 3PDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature solder terminals making them suitable for a wide range of panel mount applications.
3PDT contacts On-On operation Solder terminals Lever: round 17mm length Rating: 4A 30VDC Panel cut-out: 12.5mm APEM 5000 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 |
| Contact Configuration | 3PDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 40,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 3 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 12.5mm |
| Panel Thickness | 2.5mm |
| Product Series | 5000 |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
