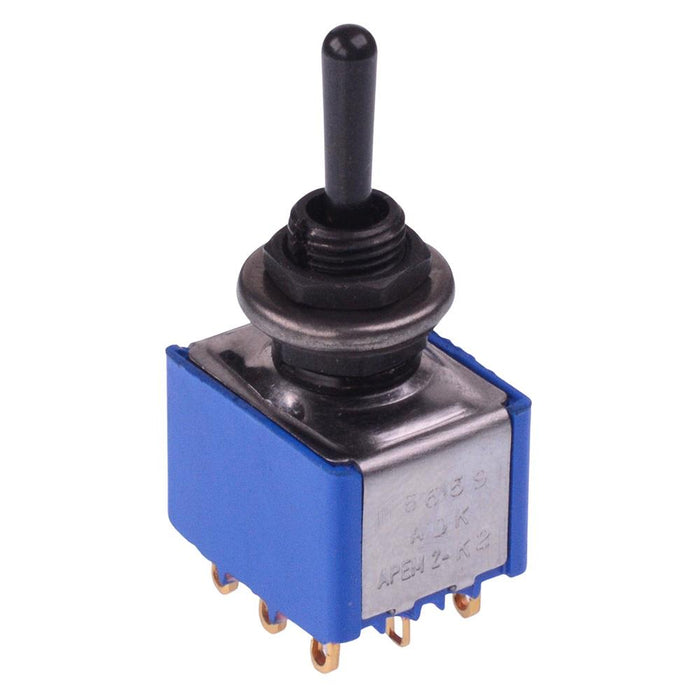

5659ADBGK APEM Black On-Off-On 6.35mm Miniature Toggle Switch 3PDT 4A 30VDC
by APEM
SKU 487562
MPN: 5659ADBGK
Availability:
31 in stock
Original price
£9.84
-
Original price
£9.84
Original price
£9.84
£9.84
£9.84
-
£9.84
Current price
£9.84
The 5659ADBGK is a miniature toggle switch featuring a 6.35mm bushing and On-Off-On 3PDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature solder terminals making them suitable for a wide range of panel mount applications.
3PDT contacts On-Off-On operation Solder terminals Lever: round 10.5mm length Rating: 4A 30VDC Panel cut-out: 6.5mm Epoxy sealed terminals APEM 5000 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | 3PDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 40,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 3 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Panel Thickness | 2.5mm |
| Product Series | 5000 |
| Switch Operation | On-Off-On |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
