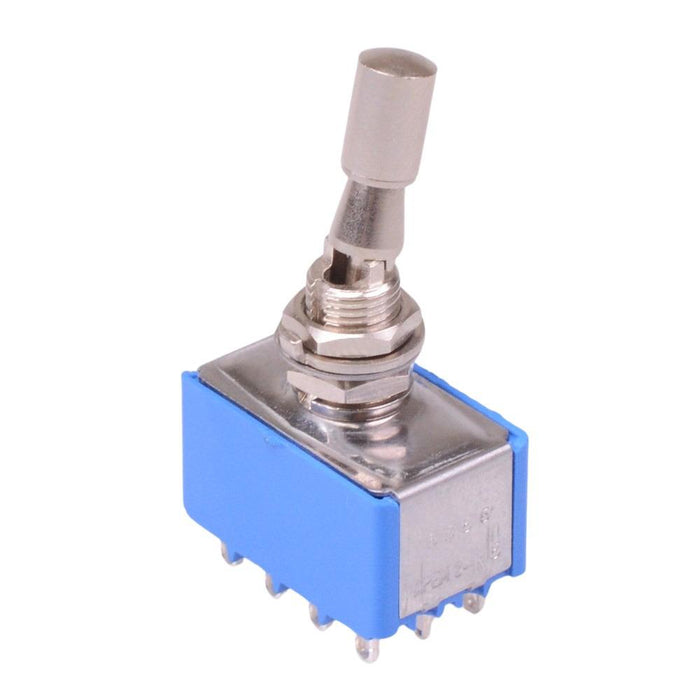

5666A-2V APEM Locking Lever On-On 6.35mm Miniature Toggle Switch 4PDT 4A 30VDC
by APEM
SKU 489871
MPN: 5666A-2V
Availability:
Out of stock
Sold out
Original price
£13.68
-
Original price
£13.68
Original price
£13.68
£13.68
-
£13.68
Current price
£13.68
The 5666A-2V is a miniature toggle switch featuring On-On 4PDT contacts, from the APEM 5000 series of switches. The switches feature a locking lever and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
Solder lug terminals Contact rating: 4A 30VDC Panel cut-out: 6.5mm 14.75mm length locking lever Silver contacts Dimensions: 38.45 x 21.2 x 13.2mm (height x depth x length) UL, CSA, CECC approved APEM 5000 series
Specification
| Actuation | Latching |
| Contact Configuration | 4PDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 4 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Panel Thickness | 2.5mm |
| Product Series | 5000 |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
