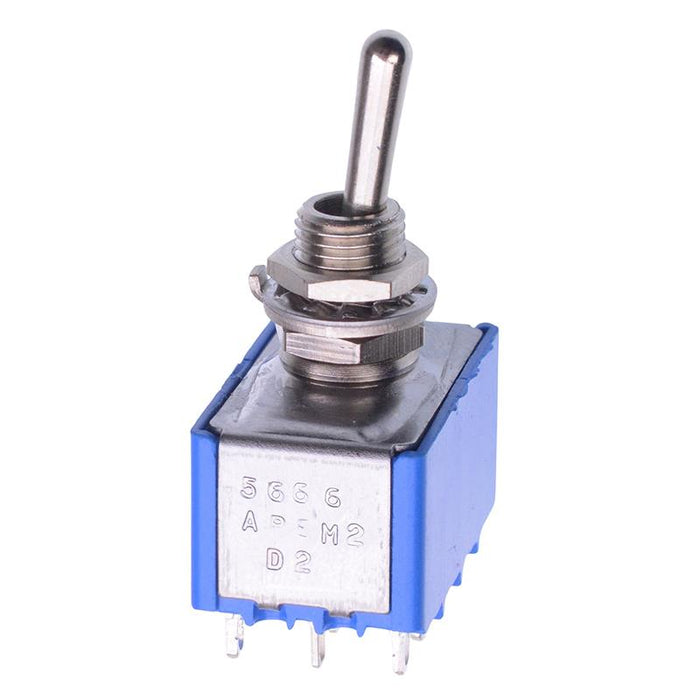

5666A On-On 6.35mm Miniature Toggle Switch 4PDT 4A 30VDC APEM
by APEM
SKU 486031
MPN: 5666A
Availability:
35 in stock
Original price
£9.54
-
Original price
£9.54
Original price
£9.54
£9.54
£9.54
-
£9.54
Current price
£9.54
The 5666A is a miniature toggle switch featuring On-On 4PDT contacts, from the APEM 5000 series of switches. The switches feature solder lug terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
Solder lug terminals Contact rating: 4A 30VDC Panel cut-out: 6.5mm Dimensions: 35.3 x 21.2 x 13.2mm (height x depth x length) UL, CSA, CECC approved APEM 5000 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 |
| Contact Configuration | 4PDT |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 30,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 4 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Panel Thickness | 2.5mm |
| Product Series | 5000 |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
