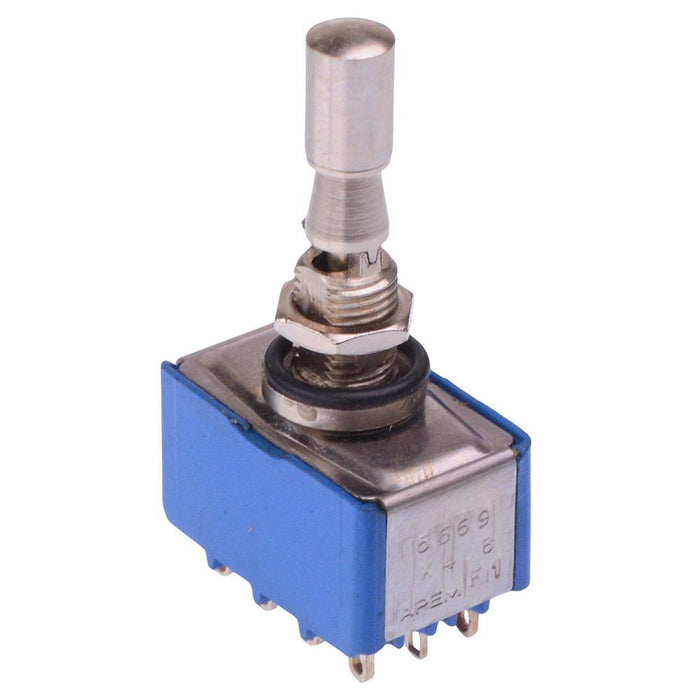

5669A3VX408 APEM On-Off-On Locking 6.35mm Miniature Toggle Switch 4PDT 4A 30VDC
by APEM
SKU 487592
MPN: 5669A3VX408
Availability:
29 in stock
Original price
£11.03
-
Original price
£11.03
Original price
£11.03
£11.03
-
£11.03
Current price
£11.03
The 5669A3VX408 is a miniature toggle switch featuring a 6.35mm bushing and On-Off-On 4PDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature solder terminals making them suitable for a wide range of panel mount applications.
4PDT contacts On-Off-On operation Solder terminals Lever: locking 15.1mm length Rating: 4A 30VDC Panel cut-out: 6.5mm APEM 5000 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | 4PDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 30,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 4 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Panel Thickness | 2.5mm |
| Product Series | 5000 |
| Switch Operation | On-Off-On |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
