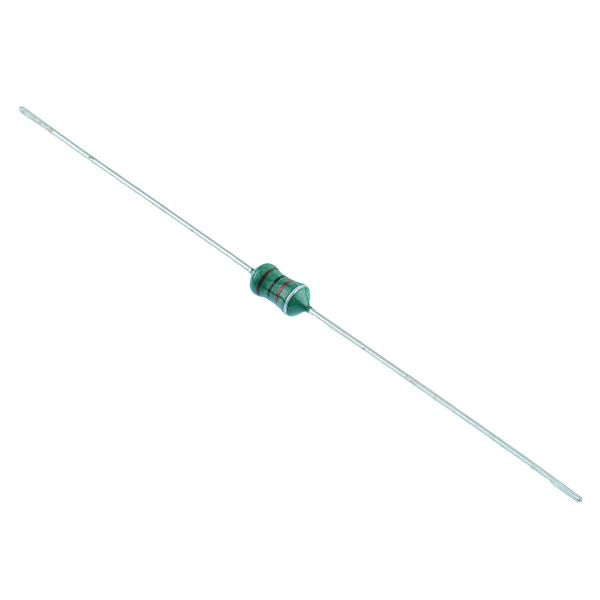

56uH Axial Leaded Inductor
SKU 480020
MPN: 480020
Availability:
633 in stock
Original price
£0.17
-
Original price
£0.17
Original price
£0.17
£0.17
-
£0.17
Current price
£0.17
56uH axial leaded inductor featuring an epoxy resin coating providing high reliability, suitable for general applications including decoupling, RF blocking and suppression.
Inductance: 56uH
DC current max: 195mA
DC resistance: 2.6Ω
Body dimensions: 3 x 8mm (Diameter x Length)
Lead dimensions: 0.55 x 27mm (Diameter x Length)
Specification
| Back Order Lead Time | 5 Days |
| Body Dimensions | 8.0 x 3.0mm |
| DC Current | 195mA |
| DC Resistance | 2.6Ω |
| MOQ | 10 |
| Q Min | 60 |
| SRF | 7.5MHz |
| Tolerance | ±10% |
