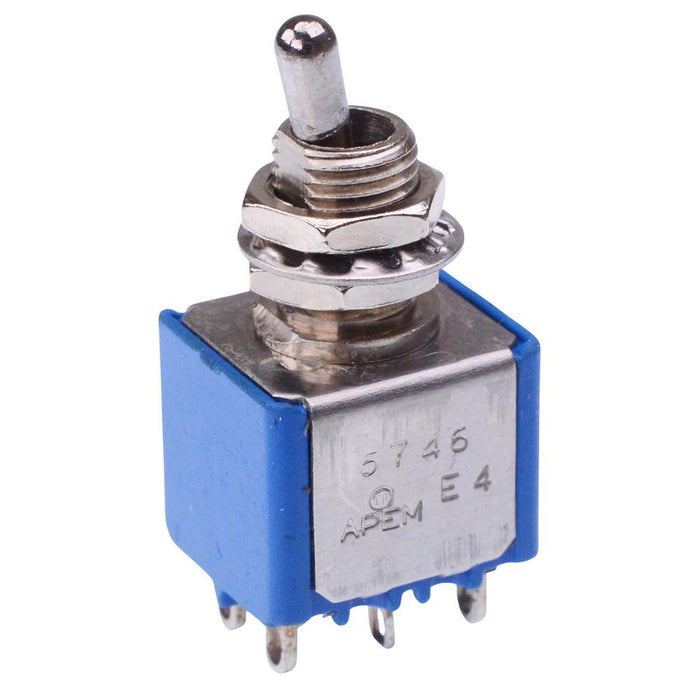

5746A16 APEM On-On 6.35mm Miniature Toggle Switch DPDT 4A 30VDC
by APEM
SKU 487419
MPN: 5746A16
Availability:
318 in stock
Original price
£3.29
-
Original price
£3.29
Original price
£3.29
£3.29
-
£3.29
Current price
£3.29
The 5746A16 is a miniature toggle switch featuring a 6.35mm bushing and On-On DPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature solder terminals making them suitable for a wide range of panel mount applications.
DPDT contacts On-On operation Solder terminals Lever: round 5.5mm length Rating: 4A 30VDC Panel cut-out: 6.5mm APEM 5000 series
Specification
Actuation | Latching |
Back Order Lead Time | 10 Days |
Contact Configuration | DPDT |
Contact Material | Silver |
Contact Rating | 4A 30VDC |
Current Rating | 4A |
Electrical Life | 50,000 Cycles |
Illuminated | No |
Mounting Style | Panel |
Number of Poles | 2 |
Number of Positions | 2 |
Operating Temperature | -40°C to +85°C |
Panel Cut Out | 6.5mm |
Panel Thickness | 2.5mm |
Product Series | 5000 |
Switch Operation | On-On |
Terminal Type | Solder |
Voltage Rating | 30VDC |
