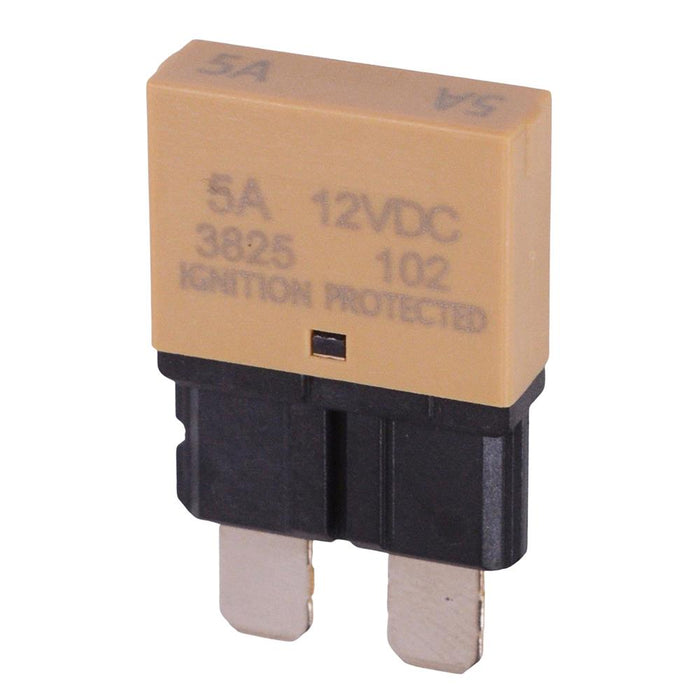

5A Auto Reset Circuit Breaker ATC Standard Blade
SKU 492187
MPN: 102-AC-050
Availability:
Out of stock
Sold out
Original price
£2.78
-
Original price
£2.78
Original price
£2.78
£2.92
£2.92
-
£2.92
Current price
£2.92
5A automotive thermal circuit breaker packaged in a ATC/ATO standard blade fuse size. The circuit breaker features auto reset operation, reconnecting a circuit after an overload has occured and been removed. The circuit breaker can be used with a wide range of automotive and marine applications where fuse replacement inconvenient.
Rating: 5A Operation: auto reset ATC/ATO standard blade fuse size Complies with SAEJ553 and SAEJ1117 Dimensions: 31.7 x 20.0 x 6.4mm (height x width x depth)
Specification
| Back Order Lead Time | 120 Days |
| Current Rating | 5A |
| Interrupting Capacity | 100A @ 28VDC |
| MOQ | 1 |
| Mounting Style | Plug-In |
| Operating Temperature | -10°C to +60°C |
| Voltage Rating | 28VDC |
