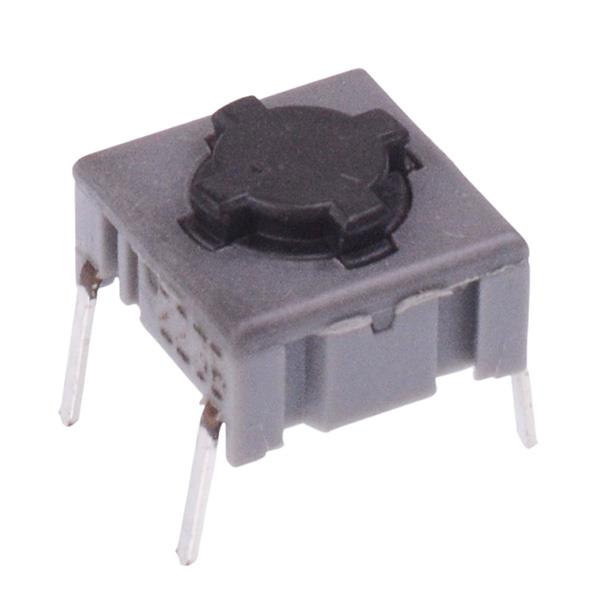

5ETH935NCN MEC High Performance Tactile Switch PCB Through Hole NO/NC
by MEC
SKU 488147
MPN: 5ETH935NCN
Availability:
Out of stock
Sold out
Original price
£0.99
-
Original price
£0.99
Original price
£0.99
Inc VAT
£0.99
-
£0.99
Current price
£0.99
Inc VAT
The 5ETH935NCN is a high performance tactile switch manufactured by MEC, featuring NO/NC silver contacts and IP67 sealing. The switches are part of the Multimec 5E series which utilises a small diameter snap-on cap retention system and actuator extended out of the switch body. The robust design of the switches make them suitable for a wide range of commerical and industrial applications.
10 x 10mm package Height: 6.4mm Momentary NO/NC contacts Anti-rotation thanks to snap-on cap retention system IP67 protection level Through hole mounting Actuation force: 3.5N Terminal pitch: 10.16 x 7.62mm Compatible caps: 1SS, 1PS, 1YS, 1YAS and Rockermec
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | SPDT |
| Contact material | Silver Plated |
| Contact rating | 50mA 24VDC |
| Current rating | 50mA |
| Electrical life | 1,000,000 Cycles |
| Height | 6.4mm |
| Mounting style | PCB |
| Number of positions | 2 |
| Operating force | 3.5N |
| Operating temperature | -40°C to +160°C |
| Pitch | 10.16 x 7.62mm |
| Product series | Multimec 5E |
| Switch operation | On-(On) |
| Terminal type | Through Hole |
| Voltage rating | 24VDC |
