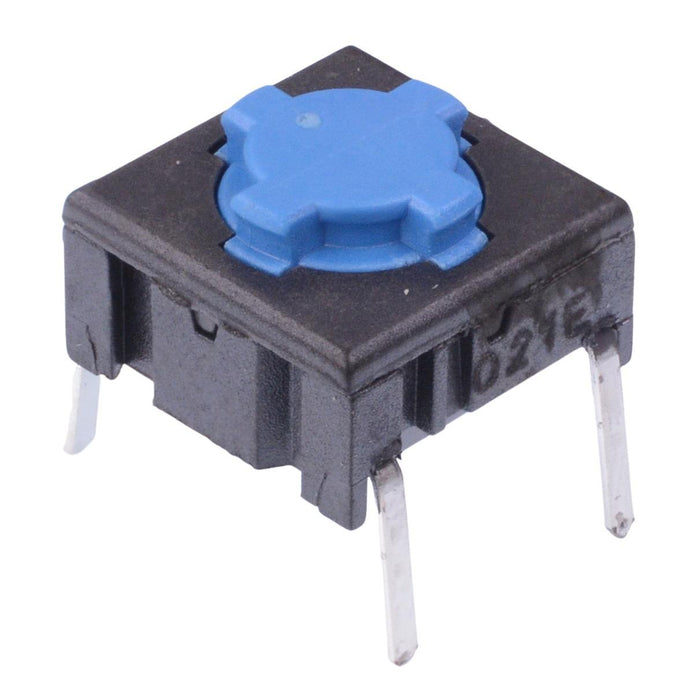

5ETH965 MEC High Perfomance Tactile Switch PCB Through Hole SPST-NO
by MEC
SKU 487444
MPN: 5ETH965
Availability:
510 in stock
Original price
£1.48
-
Original price
£1.48
Original price
£1.48
£1.48
£1.48
-
£1.48
Current price
£1.48
The 5ETH965 is a high performance tactile switch manufactured by MEC, featuring NO silver contacts and IP67 sealing. The switches are part of the Multimec 5E series which utilises a small diameter snap-on cap retention system and actuator extended out of the switch body. The robust design of the switches make them suitable for a wide range of commerical and industrial applications.
10 x 10mm package Height: 6.4mm Momentary NO contacts Anti-rotation thanks to snap-on cap retention system IP67 protection level Through hole mounting Actuation force: 6.5N Terminal pitch: 10.16 x 7.62mm Compatible caps: 1SS, 1PS, 1YS, 1YAS and Rockermec
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPST |
| Contact Material | Silver Plated |
| Contact Rating | 50mA 24VDC |
| Current Rating | 50mA |
| Electrical Life | 10,000,000 Cycles |
| Height | 6.4mm |
| Mounting Style | PCB |
| Number of Positions | 2 |
| Operating Force | 6.5N |
| Operating Temperature | -40°C to +160°C |
| Pitch | 10.16 x 7.62mm |
| Product Series | Multimec 5E |
| Switch Operation | Off-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 24VDC |
