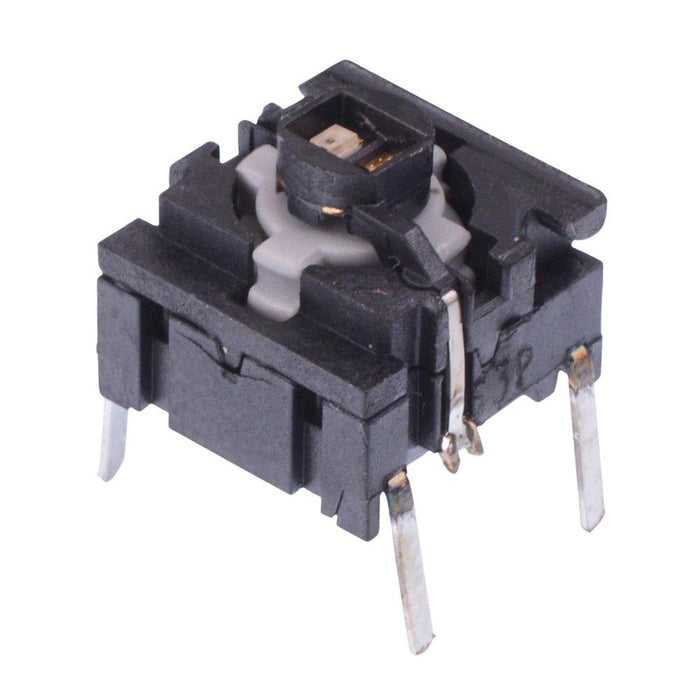

5GTH92042 MEC Yellow LED High Performance Tactile Switch PCB SPST-NO
by MEC
SKU 487860
MPN: 5GTH92042
Availability:
97 in stock
Original price
£2.27
-
Original price
£2.27
Original price
£2.27
Inc VAT
£2.27
-
£2.27
Current price
£2.27
Inc VAT
The 5GTH92042 is a high performance illuminated tactile switch manufactured by MEC, featuring NO silver contacts and IP67 sealing. The switches are part of the Multimec 5G series which utilises a large diameter snap-on cap retention system and actuator levelled with the switch body. The robust design of the switches make them suitable for a wide range of commerical and industrial applications.
10 x 10mm package Height: 8.5mm Yellow LED LED forward voltage: 1.75V typical LED forward current: 25mA Momentary NO contacts IP67 protection level Through hole mounting Actuation force: 2.0N Terminal pitch: 10.16 x 7.62mm Compatible caps: 1A, 1B, 1DS, 1ES, 1FS, 1GAS, 1GCS, 1H, 1IS, 1JS, 1KS, 1KBS, 1KCS, 1LS, 1M, 1NS, 1PS, 1QS, 1RS, 1SS, 1TS, 1US, 1VS, 1WAS, 1WDS, 1WPS, 1XS, 1ZA, 1ZB, 1ZCS, 1Z, 1ZW, 10R, 10RF, 10RM, 10Q, 10QM, 10C and Aquamec
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | SPST |
| Contact material | Silver Plated |
| Contact rating | 50mA 24VDC |
| Current rating | 50mA |
| Electrical life | 10,000,000 Cycles |
| Height | 8.5mm |
| Mounting style | PCB |
| Number of positions | 2 |
| Operating force | 2N |
| Operating temperature | -40°C to +160°C |
| Pitch | 10.16 x 7.62mm |
| Product series | Multimec 5G |
| Switch operation | Off-(On) |
| Terminal type | Through Hole |
| Voltage rating | 24VDC |
