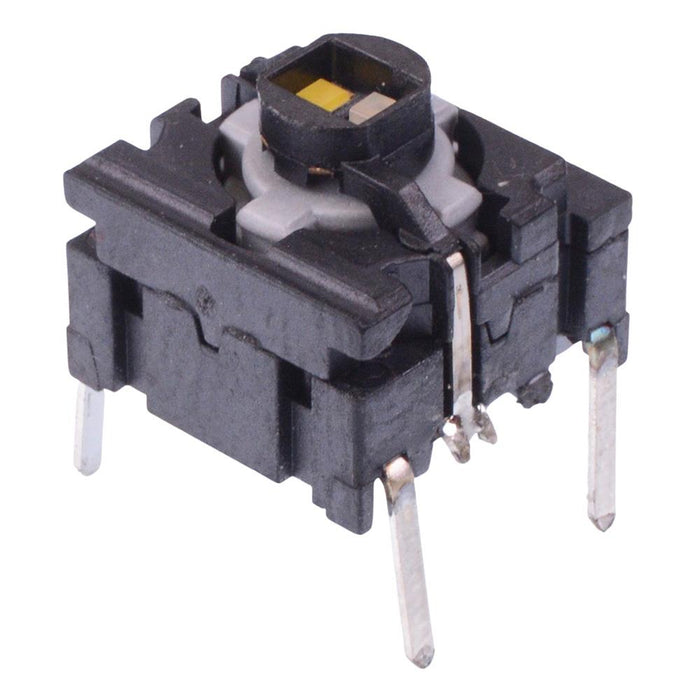

5GTH9208261 MEC Red/White LED High Performance Tactile Switch PCB SPST-NO
by MEC
SKU 487945
MPN: 5GTH9208261
Availability:
70 in stock
Original price
£2.57
-
Original price
£2.57
Original price
£2.57
Inc VAT
£2.57
-
£2.57
Current price
£2.57
Inc VAT
The 5668A is a miniature toggle switch featuring On-Off-(On) momentary 4PDT contacts, from the APEM 5000 series of switches. The switches feature solder terminals and 6.35mm threaded bushing, making it suitable for a wide range of panel mount applications.
4PDT contacts On-Off-(On) momentary operation Solder lug terminals Contact rating: 4A 30VDC Panel cut-out: 6.5mm Dimensions: 35.3 x 21.2 x 13.2mm (height x depth x length) UL, CSA, CECC approved APEM 5000 series
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | SPST |
| Contact material | Silver Plated |
| Contact rating | 50mA 24VDC |
| Current rating | 50mA |
| Electrical life | 10,000,000 Cycles |
| Height | 8.5mm |
| Mounting style | PCB |
| Number of positions | 2 |
| Operating force | 2N |
| Operating temperature | -40°C to +160°C |
| Pitch | 10.16 x 7.62mm |
| Product series | Multimec 5G |
| Switch operation | Off-(On) |
| Terminal type | Through Hole |
| Voltage rating | 24VDC |
