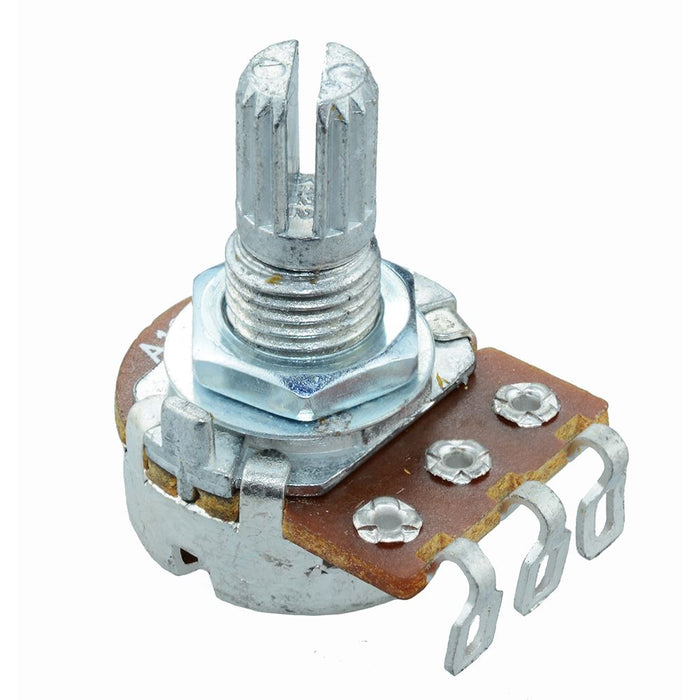

5k 16mm Logarithmic Splined Potentiometer Solder Lugs
SKU 551874
MPN: 551874
Availability:
263 in stock
Original price
£0.53
-
Original price
£0.53
Original price
£0.53
£0.53
-
£0.53
Current price
£0.53
16mm potentiometers featuring a splined 6mm shaft and 16mm diameter base. The potentiometers feature solder lug terminals and are suitable for panel mount applications.
5k resistance Logarithmic taper Solder lug contacts 7mm panel cut-out 15mm shaft length 20% tolerance
Specification
| Back Order Lead Time | 45 Days |
| Dimensions | 17mm Diameter |
| Maximum Voltage | 150V |
| Mounting Hole Diameter | 7mm |
| Mounting Type | Panel Mount |
| Operating Temperature | -25°C to +70°C |
| Pitch | 5mm |
| Power Rating | 0.063W |
| Resistance | 5KΩ |
| Shaft Diameter | 6mm |
| Taper | Logarithmic |
| Termination Type | Solder Lug |
| Tolerance | ±20% |
| Total Rotation | 300° |
