5K Linear Mono PC16 Potentiometer Piher
by Piher
SKU 552354
MPN: 6PMI-5K
Availability:
71 in stock, ready to be shipped
Original price
£1.78
-
Original price
£1.78
Original price
£1.78
Inc VAT
£1.78
-
£1.78
Current price
£1.78
Inc VAT

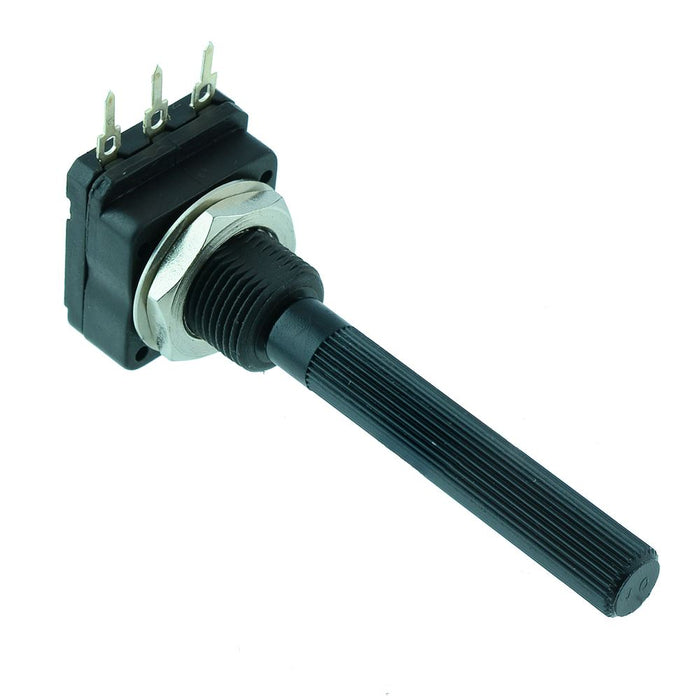

Enclosed 5K linear mono potentiometer featuring a 6mm diameter shaft and self-extinguishing plastic case, suitable for PCB applications.
6mm diameter splined shaft 31.5mm shaft length ±20% tolerance 300° mechanical rotation Carbon resistive element Dust proof enclosure Self extinguishable material UL94V-0 Piher PC16 series
Specification
| Maximum voltage | 250VDC |
| Mounting hole diameter | 10mm |
| Mounting type | Panel Mount |
| Operating temperature | -25°C to +70°C |
| Pitch | 5mm |
| Power rating | 0.2W |
| Resistance | 5kΩ |
| Shaft diameter | 6mm |
| Taper | Linear |
| Termination type | Pin |
| Tolerance | ±20% |
| Total rotation | 300° |
