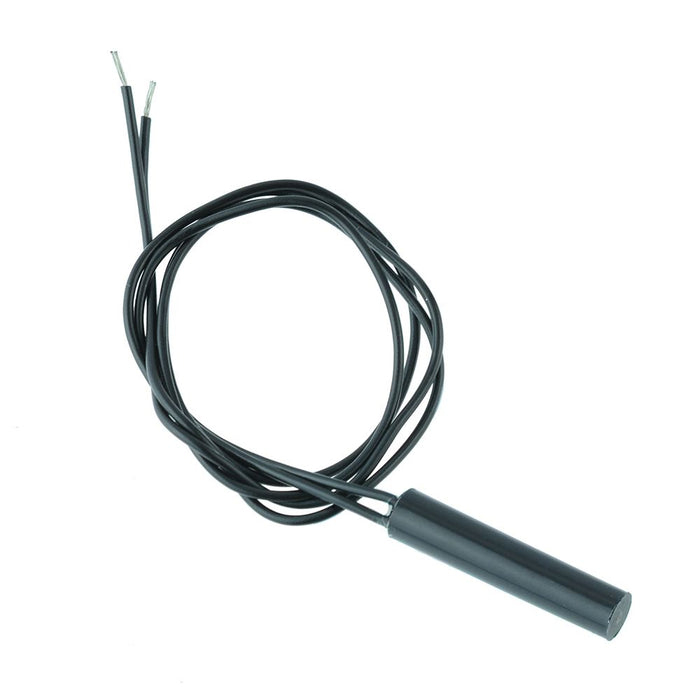

5mm Cylindrical Reed Switch SPST-NO 250mA 100V - S1369
by Comus
SKU 552578
MPN: S1369
Availability:
21 in stock
Original price
£4.06
-
Original price
£4.06
Original price
£4.06
Inc VAT
£4.06
-
£4.06
Current price
£4.06
Inc VAT
The S1369 is a cylindrical reed switch featuring normally open contacts and a polypropylene case. Suitable for position or limit sensing applications.
Suggested magnet: PRM Normally open contacts Maximum switching voltage: 100VAC Maximum switching current: 0.25A Maximum switching capacity: 5VA Switching distance: 5mm Min 2 x round 0.22mm² PVC insulated wire
Specification
| Back order lead time | 180 Days |
| Contact configuration | SPST-NO |
| Material | Black Polypropylene |
| Maximum switching capacity | 5VA |
| Maximum switching current | 0.25A |
| Maximum switching voltage | 100VAC |
| Operating temperature | -20°C to +70°C |
