5mm Cylindrical Reed Switch SPST-NO 500mA 400V - S1370

by Comus
SKU 552579

MPN: S1370

Availability:
26 in stock
Original price £4.42 - Original price £4.42
Original price
£4.42 Inc VAT
£4.42 - £4.42
Current price £4.42 Inc VAT

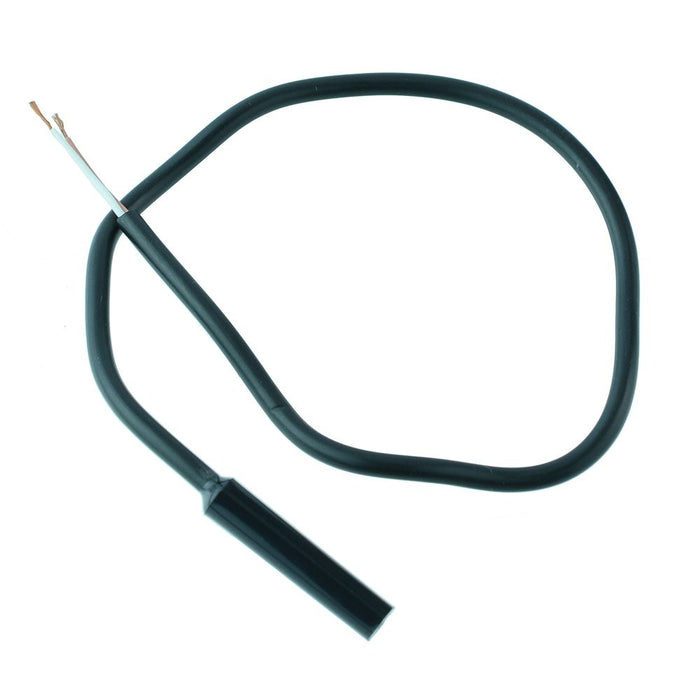

The S1370 is a cylindrical reed switch featuring normally open contacts and a polypropylene case. Suitable for position or limit sensing applications.

  • Suggested magnet: PRM
  • Normally open contacts
  • Maximum switching voltage: 400VAC
  • Maximum switching current: 0.5A
  • Maximum switching capacity: 10W/VA
  • Switching distance: 5mm Min
  • 2 x round 0.22mm² PVC insulated wire
  • Specification
    Back order lead time 180 Days
    Carry current 1A
    Contact configuration SPST-NO
    Diameter 6mm
    Material Nylon 66
    Maximum switching capacity 10W/VA
    Maximum switching current 0.5A
    Maximum switching voltage 400VAC
    Operating temperature -20°C to +85°C
