5uF Motor Run Capacitor Metallised Polypropylene 450V

SKU 485620

MPN: 4.16.10.08.64

Availability:
Only 1 left!
Original price £3.40 - Original price £3.40
Original price
£3.40 Inc VAT
£3.40 - £3.40
Current price £3.40 Inc VAT

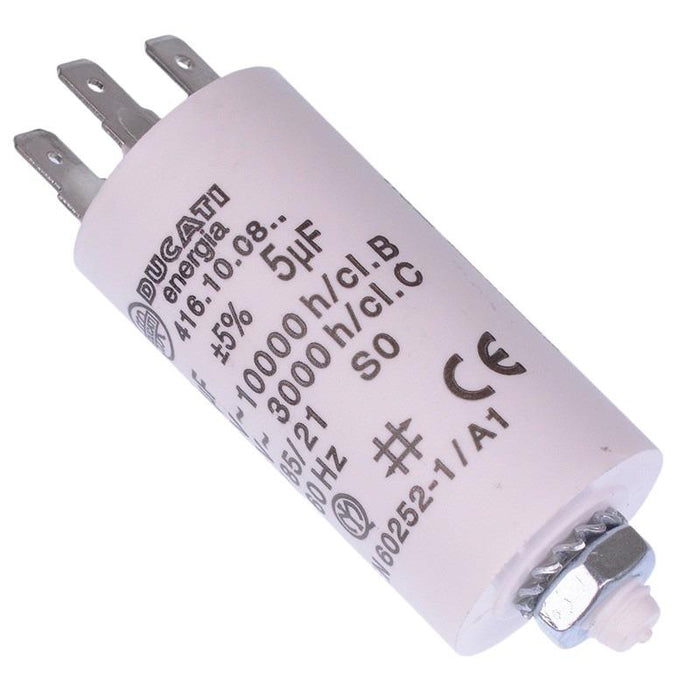

The 4.16.10.08.64 is a 5uF motor run snap-in polypropylene capacitor featuring a small and compact package. The capacitor is manufactured from a self-extuinquishing plastic and meets the main international approvals.

  • Low loss non-inductive winding
  • Self healing property avoiding short circuits
  • Small size and limited weight
  • No leakage risk
  • M8 stud
  • Quick connect 6.3mm terminals
  • Voltage: 450VAC
  • Dimensions: 28 x 55mm (diameter x height)
  • Specification
    Back order lead time 5 Days
    Capacitance 5uF
    Diameter 28mm
    Height 55mm
    Material Polypropylene
    Mounting style Through Hole
    Operating temperature -25°C to +85°C
    Tolerance ±5%
    Voltage rating 450V
