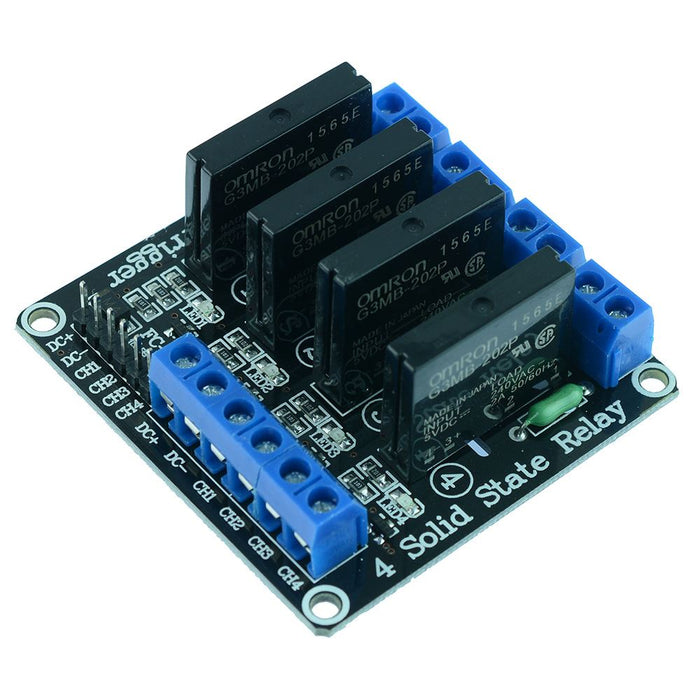

5V 4 Channel Solid State Relay Board

5V 4 Channel Solid State Relay Board

by Switch Electronics
SKU 481103

MPN: 481103

Availability:
Out of stock
Sold out
£14.83 - £14.83
£14.83
£14.83
£14.83 - £14.83
£14.83
4 channel active low relay board featuring solid state relays providing higher reliability due to no moving parts. The relays are controlled by a microcontroller connected to the output pin and require a 5V DC power supply.

  • 4 channel
  • 0-2.5V the relay is ON
  • 3-5V the relay is OFF
  • Each channel features LED indicator
  • Input power supply: 5V 160mA
  • Rated output load: 2A 240V
  • Dimensions: 57 x 55 x 25mm
    • Specification
    Back Order Lead Time 45
    Coil Voltage 5VDC
    MOQ 1
    Number of Channels 4
    Terminal Type Terminal Block
