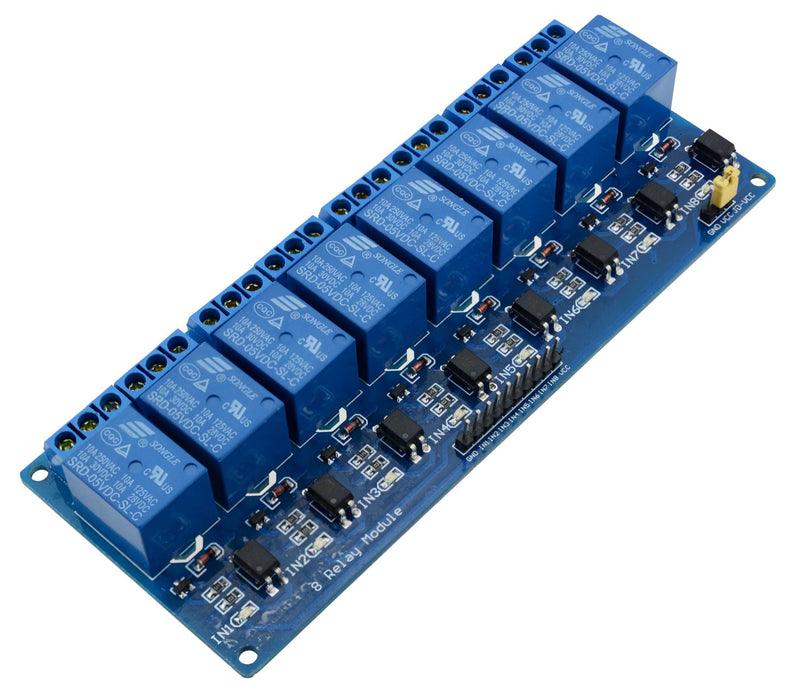

5V 8-Channel Relay Board Module
SKU 309005
MPN: 309005
Availability:
173 in stock
Original price
£8.28
-
Original price
£8.28
Original price
£8.28
£8.28
£8.28
-
£8.28
Current price
£8.28
Active low relay board with 5V relays capable of being switched on-off by an opto-isolated digital input. The relays are controlled by a microcontroller connected to the output pin and require a minimum 1V to switch the inputs ON. Suitable for 5V and 3.3V devices, these boards are perfect for Raspberry Pi, Arduino, PIC and various other microcontrollers.
8 Channels Maximum switching voltage: 250VAC / 30VDC Maximum switching current: 10A Each relay features an LED indicator Dimensions: 138 x 56 x 18mm (Length x Width x Height)
Specification
| Back Order Lead Time | 45 |
| Coil Voltage | 5VDC |
| MOQ | 1 |
| Number of Channels | 8 |
| Terminal Type | Pin Header |
