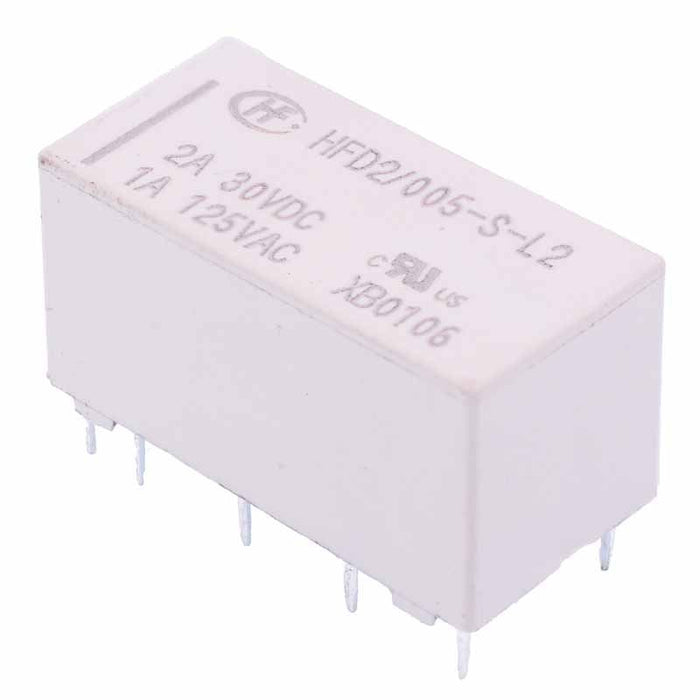

5V Miniature Latching Relay DPDT HFD2/005-S-L2
by HongFa
SKU 483105
MPN: HFD2/005SL2
Availability:
Out of stock
Sold out
Original price
£2.38
-
Original price
£2.38
Original price
£2.38
£2.38
£2.38
-
£2.38
Current price
£2.38
5V miniature latching relay manufactured by HongFa featuring DPDT contacts and high sensitivity. The relay is epoxy sealed and is compatible with standard 16-pin IC sockets or through hole PCB mounting.
Coil Voltage: 5VDC Maximum switching current: 3A Maximum switching voltage: 220VDC / 250VAC Contact rating: 2A 30VDC / 1A 125VAC Coil power: 150mW Dimensions: 20.2 x 10 x 10.2mm (L x W x H)
Specification
| Ambient Temperature | -40°C to +85°C |
| Back Order Lead Time | 150 |
| Coil Resistance | 125Ω |
| Coil Voltage | 5VDC |
| Contact Arrangement | DPDT |
| Maximum Continuous Voltage | 10VDC |
| Maximum Switching Current | 3A |
| Maximum Switching Voltage | 250VAC / 220VDC |
| MOQ | 1 |
| Mounting Type | PCB |
| Number of Contacts | 8 |
| Power Consumption | 0.15W |
| Terminal Type | Through Hole |
