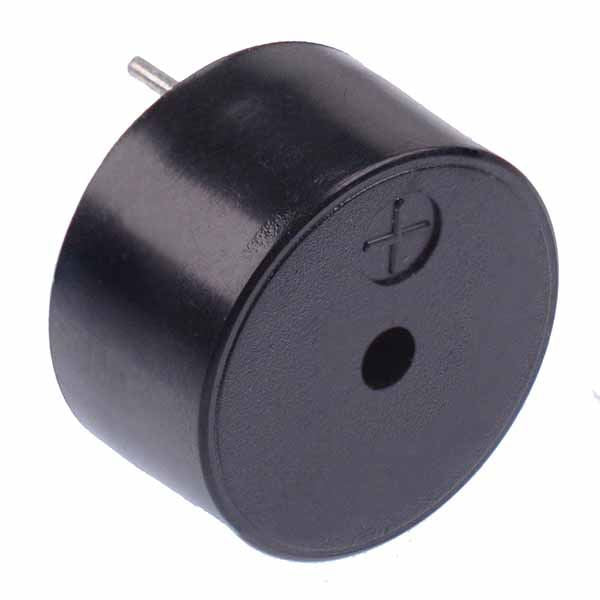

5V Piezo PCB Mount Buzzer 14x7.8mm

SKU 483038

MPN: 483038

Back Order Availability: 30

Availability:
604 in stock, ready to be shipped
Original price £0.84 - Original price £0.84
Original price
£0.84 Inc VAT
£0.84 - £0.84
Current price £0.84 Inc VAT
5V PCB mounting piezo sound generator featuring a 80dB tone and 3 to 9VDC operating voltage. The buzzer features a 7.8mm height and the polarity is marked on the case for easy installation.

  • Built-in oscillating circuit
  • Rated voltage: 5V
  • Operating voltage: 3 to 9VDC
  • Maximum rated current: 8mA
  • 7.62mm PCB pin pitch
  • Dimensions: 14 x 7.8mm (Diameter x Height)
  • Specification
    Back order lead time 30
    Diameter 14mm
    Frequency 4.0KHz
    Height 7.8mm
    Input voltage 3-9VDC
    Mounting style PCB Mount
    Operating temperature -20°C to +80°C
    Pitch 7.62mm
    Rated current 8mA
    Rated voltage 5VDC
    Sound output 80dB @ 10cm
