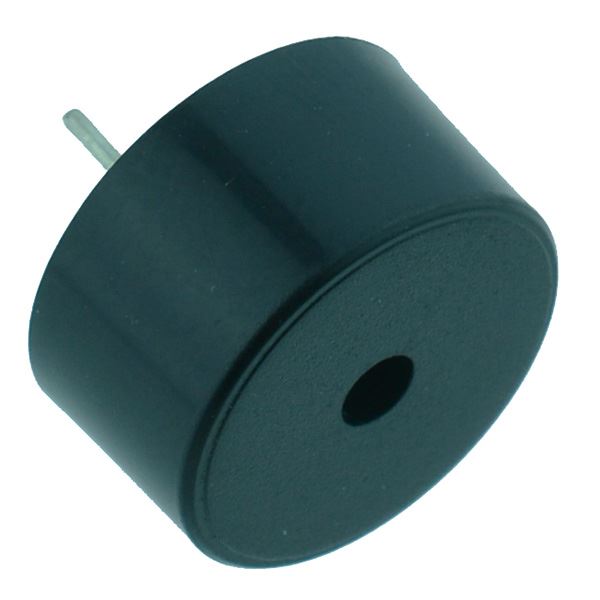

5V Piezo Transducer Buzzer PCB (Without Circuit)

SKU 480166

MPN: 480166

Back Order Availability: 30

Availability:
1119 in stock, ready to be shipped
Original price £0.40 - Original price £0.40
Original price
£0.40 Inc VAT
£0.40 - £0.40
Current price £0.40 Inc VAT
PCB mounting buzzer featuring a 75dB tone operating from a 5V DC power supply. The buzzer features a 6mm height and the polarity is marked on the case.

  • Without circuit
  • Rated voltage: 5V
  • Maximum rated current: 3mA
  • Low profile design
  • 5mm PCB pin pitch
  • Dimensions: 12 x 6mm (Diameter x Height)
  • Specification
    Back order lead time 30
    Frequency 4.0Khz
    Mounting style PCB Mount
    Operating temperature -20°C to +70°C
    Rated current 3mA
    Rated voltage 5VDC
    Sound output 75dB @ 10cm
