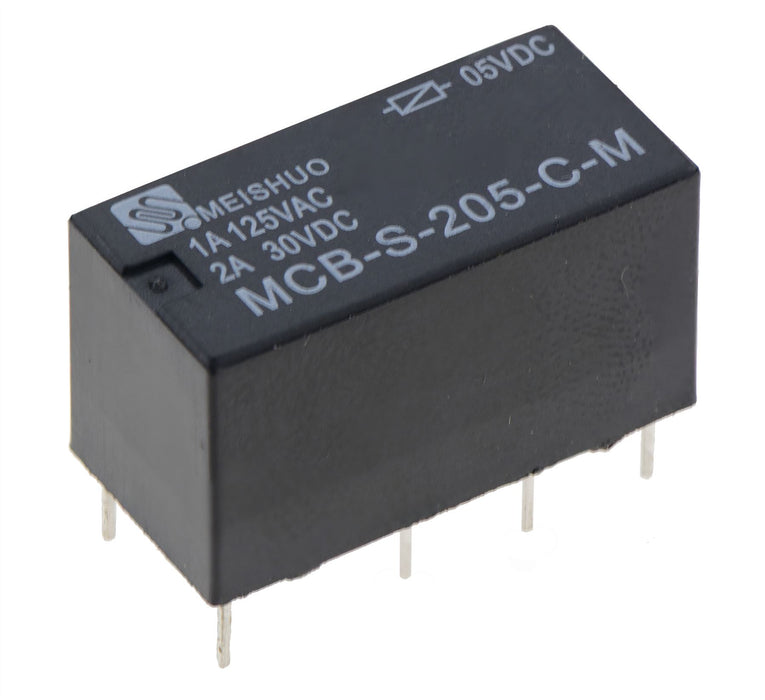

5V DPDT Subminiature Changeover PCB Relay 2A MCB-S-205-C-M
by Meishuo
SKU 309011
MPN: MCB-S-205-C-M
Availability:
383 in stock
Original price
£0.92
-
Original price
£0.92
Original price
£0.92
£0.92
-
£0.92
Current price
£0.92
5V subminiature PCB relay featuring DPDT contacts and compact low profile package, suitable for through hole or IC socket mounting with high density PCBs.
Contacts: DPDT Coil voltage: 5VDC Sealed construction Contact rating: 2A 30VDC, 1A 125VAC Coil power: 280-580mW Fits 16-pin IC sockets Dimensions: 20.2 x 10 x 11.5mm
Specification
| Ambient Temperature | -40°C to +85°C |
| Back Order Lead Time | 120 Days |
| Coil Resistance | 90Ω |
| Coil Voltage | 5VDC |
| Contact Arrangement | DPDT |
| Maximum Switching Current | 2A |
| Maximum Switching Voltage | 125VAC / 30VDC |
| Mounting Type | PCB |
| Number of Contacts | 8 |
| Power Consumption | 280-580mW |
| Terminal Type | Through Hole |
