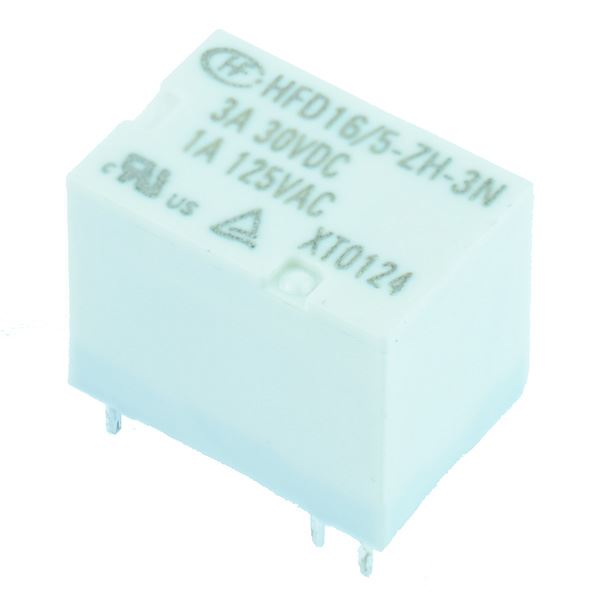

5V Subminiature Signal PCB Relay 5A SPDT

by HongFa
SKU 481670

MPN: HFD16/5-ZH-3N

Availability:
258 in stock
Original price £0.97 - Original price £0.97
Original price
£0.97 Inc VAT
£0.97 - £0.97
Current price £0.97 Inc VAT
Subminiature signal relay manufactured by HongFa featuring a 5V coil and SPDT contacts, suitable for PCB applications.

  • Coil voltage: 5V
  • Contact configuration: SPDT
  • Contact Rating: 1A 125VAC, 3A 30VDC
  • Maximum switching voltage: 250VAC, 220VDC
  • Maximum switching current: 8A(30VDC)
  • Coil power: 200mW
  • Dimensions: 15.7 x 10.6 x 11.8mm (Length x Width x Height)
  • Specification
    Ambient temperature -40°C to +85°C
    Back order lead time 30 Days
    Coil resistance 120Ω
    Coil voltage 5VDC
    Contact arrangement SPDT
    Maximum continuous voltage 6.5VDC
    Maximum switching current 8A
    Maximum switching voltage 250VAC / 220VDC
    Mounting type PCB
    Number of contacts 5
    Power consumption 0.2W
    Terminal type Through Hole
