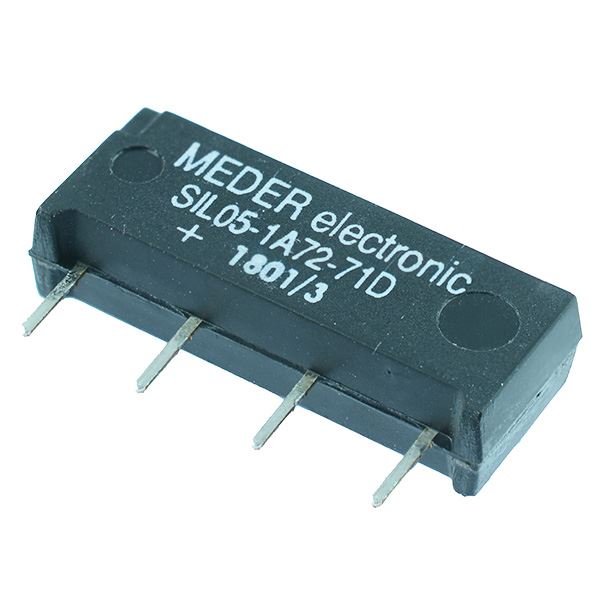

5VDC Normally Open Reed Relay SPST SIL05-1A72-71D
by Meder
SKU 481074
MPN: SIL05-1A72-71D
Availability:
19 in stock
Original price
£3.75
-
Original price
£3.75
Original price
£3.75
Inc VAT
£3.75
-
£3.75
Current price
£3.75
Inc VAT
The SIL05-1A72-71D is a general purpose 5V single in-line reed relay featuring SPST normally open contacts. The relay features a low profile compact design, compatible with SIL relays.
Coil voltage: 5VDC Relay features a protection diode Pull-in voltage: 3.5VDC Max Drop-out voltage: 0.75VDC Min Maximum switching power: 10W Maximum switching voltage: 200VAC Maximum switching current: 0.5A Maximum carry current: 1A Maximum release time: 0.7ms Dimensions: 19.2 x 5.08 x 7.62mm
Specification
Ambient Temperature | -20°C to +70°C |
Back Order Lead Time | 5 Days |
Coil Resistance | 500Ω |
Coil Voltage | 5VDC |
Contact Arrangement | SPST-NO |
Maximum Switching Current | 0.5A |
Maximum Switching Voltage | 200VAC |
Mounting Type | PCB |
Number of Contacts | 4 |
Terminal Type | Through Hole |
