5x20mm Panel Mount Screw Fuse Holder 10A R3-11B
by SCI
SKU 481948
MPN: R3-11B
Availability:
456 in stock
Original price
£0.95
-
Original price
£0.95
Original price
£0.95
£0.95
£0.95
-
£0.95
Current price
£0.95

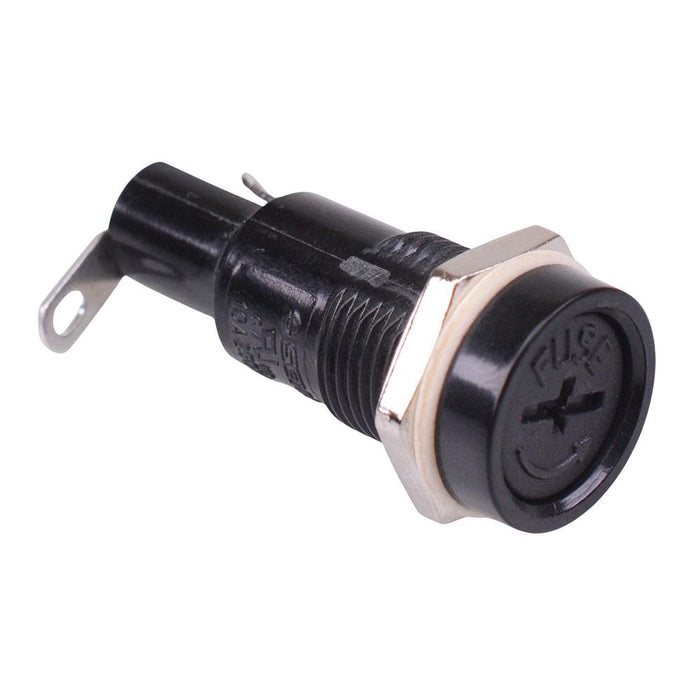

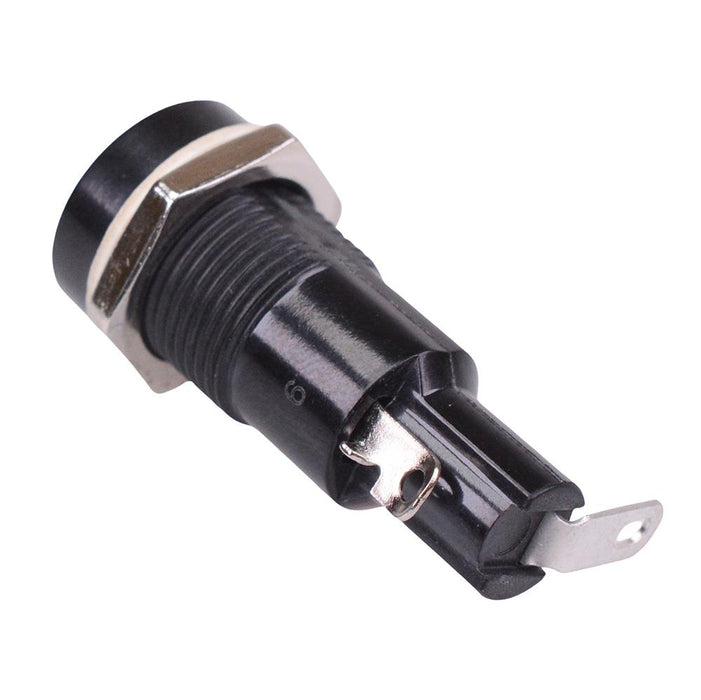

The R3-11B is a panel mount fuse holder suitable for use with 5x20mm cartridge fuses. The holder features a screw-in cap and 10A current rating, suitable for various circuit protection applications.
Fuse size: 5x20mm Mounting hole diameter: 13.2mm Maximum current: 10A Voltage rating: 250V Maximum panel thickness: 4.5mm Nickel plated brass contacts Dimensions: 34 x 15mm (length x diameter)
Specification
| Back Order Lead Time | 150 |
| Body Material | Phenolic |
| Current Rating | 10A |
| Fuse Size | 5x20mm |
| MOQ | 1 |
| Mounting Style | Panel Mount |
| Number of Fuses | 1 |
| Panel Cut Out | 13.2mm |
| Voltage Rating | 250VAC |
