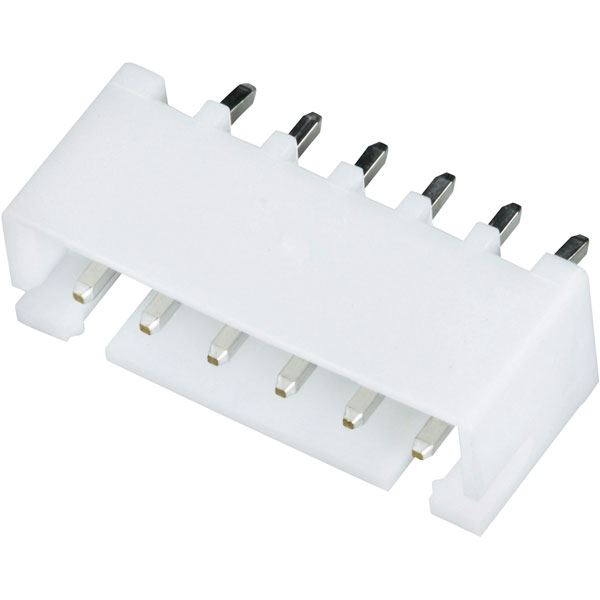

6 Pole JST XH Top Entry Male Connector 2.5mm

SKU 550380

MPN: 550380

Availability:
338 in stock
Original price £0.15 - Original price £0.15
Original price
£0.15 Inc VAT
£0.15 - £0.15
Current price £0.15 Inc VAT
6 way pin header with 2.5mm pitch suitable for connecting wires to PCBs. The headers feature a friction lock to ensure secure retention when mated and are suitable for replacing JST XH connectors.

  • 2.5mm pitch
  • Solder termination
  • Nylon-66 housing
  • Tin plated bronze contacts
  • Rated Current: 3A
  • Rated Voltage: 250V
  • Specification
    Back order lead time 45 Days
    Contact material Tin Plated Phosphor Bronze
    Current rating 3A
    Housing material PA66
    Moq 5
    Mounting type PCB Mount
    Number of ways 6
    Operating temperature -25°C to +85°C
    Pitch 2.5mm
    Termination method Solder
    Voltage rating 250VAC
